Outdoor Electrical Cabinet Enclosure IP66 Wall Mounted IK10 RAL 7035 SZA-A Galvar
| Type | Corrosivity category | Material | Coating |
|---|---|---|---|
| SZK-A | C4 | galvanized steel sheet | RAL7035 |
INNOVATIVE GALVAR® TECHNOLOGY - ADHESION INSTEAD OF WELDING
Radiolex Patent number: Pat.237638
Technical Summary
Product Type – SZK-A
Mounting – Wall-mounted or free-standing (with optional plinth)
Material / Finish – Galvanised steel powder-coated in RAL7035
Corrosion Resistance Class – C4
Impact Resistance – IK10
Ingress Protection – IP66
Temperature Range – –40°C to +80°C
Product Overview

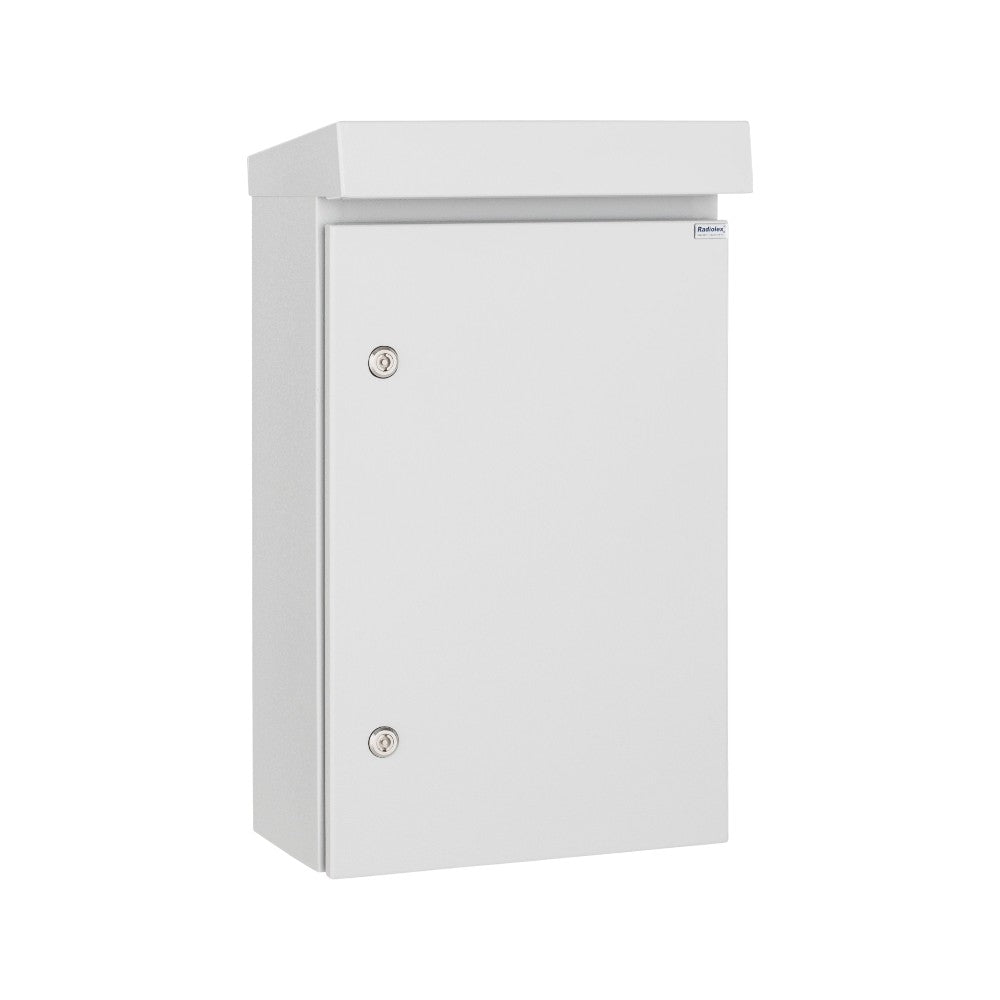

The SZK-A IP66 enclosure is a premium, heavy-duty solution designed for outdoor electrical and industrial installations. Its sloped roof enhances drainage and prevents debris build-up, while the high IP66 rating ensures complete protection against dust and powerful water jets — ideal for harsh environments.
Constructed from galvanized steel and finished in durable RAL7035 powder coating, this enclosure offers superior corrosion resistance, especially in C4-class environments with higher salinity or pollution levels.
Engineered and manufactured in Europe, the SZK-A enclosure benefits from ISO 9001, ISO 14001, and ISO 3834-2 certified processes, ensuring quality, durability, and compliance with relevant EU standards (EN 62208, EN 60529, EN ISO 12944-2).
Key Features
- Sloped roof design improves water runoff and prevents dirt accumulation
- Galvanised steel, powder coating provides enhanced corrosion resistance
- Weld-free construction maintains protective coating integrity
- Supplied with D5 lock(s) — 1 for enclosures up to 500 mm height, 2 for taller units
- Includes wall mounting brackets for secure installation
- Optional plinth/base for floor mounting
- Finished in robust RAL7035 polyester powder coating
- 105° hinged door with reversible swing direction
- Internal reinforcing frame for mounting accessories or equipment
- Includes a 3 mm galvanized steel mounting plate
- Gland plate opening on base (size varies by width)
- Earthing studs included in both enclosure body and door
- Rated for C4 environments (industrial zones or coastal areas with moderate salinity)
- IP66-rated for full dust protection and high-pressure water jet resistance
- Optional 5-year extended warranty
Customisation Options
- Thermal insulation for temperature-sensitive installations
- Extended temperature range: –40°C to +80°C
- Custom dimensions or pre-punched cut-outs in door, body, or mounting plate
- Paintable in any RAL colour to meet project design requirements
Made to Order for Larger Quantities
This product is available to order in larger quantities. For bulk requirements, project orders, or bespoke quantity requests, please contact us directly so we can confirm availability, lead time, and pricing.
The following table presents enclosures equipped with a mounting plate.
| No. | Dimensions (W × H × D mm) | Catalogue No. SZK-A |
|---|---|---|
| 1 | 200 × 300 × 150 | 118-901 |
| 2 | 300 × 200 × 150 | 118-902 |
| 3 | 300 × 300 × 150 | 118-903 |
| 4 | 300 × 300 × 210 | 118-904 |
| 5 | 300 × 300 × 250 | 118-905 |
| 6 | 300 × 400 × 150 | 118-906 |
| 7 | 300 × 400 × 210 | 118-907 |
| 8 | 300 × 400 × 250 | 118-908 |
| 9 | 300 × 500 × 210 | 118-909 |
| 10 | 400 × 300 × 150 | 118-910 |
| 11 | 400 × 300 × 210 | 118-911 |
| 12 | 400 × 300 × 250 | 118-912 |
| 13 | 400 × 400 × 150 | 118-913 |
| 14 | 400 × 400 × 210 | 118-914 |
| 15 | 400 × 400 × 250 | 118-915 |
| 16 | 400 × 400 × 300 | 118-916 |
| 17 | 400 × 500 × 210 | 118-917 |
| 18 | 400 × 500 × 250 | 118-918 |
| 19 | 400 × 500 × 300 | 118-919 |
| 20 | 400 × 600 × 210 | 118-920 |
| 21 | 400 × 600 × 250 | 118-921 |
| 22 | 400 × 600 × 300 | 118-922 |
| 23 | 400 × 800 × 210 | 118-923 |
| 24 | 400 × 800 × 250 | 118-924 |
| 25 | 400 × 800 × 300 | 118-925 |
| 26 | 400 × 1000 × 250 | 118-926 |
| 27 | 400 × 1000 × 300 | 118-927 |
| 28 | 500 × 500 × 210 | 118-928 |
| 29 | 500 × 500 × 300 | 118-929 |
| 30 | 500 × 600 × 210 | 118-930 |
| 31 | 500 × 600 × 250 | 118-931 |
| 32 | 500 × 600 × 300 | 118-932 |
| 33 | 500 × 700 × 250 | 118-933 |
| 34 | 600 × 400 × 210 | 118-934 |
| 35 | 600 × 400 × 250 | 118-935 |
| 36 | 600 × 400 × 300 | 118-936 |
| 37 | 600 × 500 × 300 | 118-937 |
| 38 | 600 × 600 × 210 | 118-938 |
| 39 | 600 × 600 × 250 | 118-939 |
| 40 | 600 × 600 × 300 | 118-940 |
| 41 | 600 × 600 × 400 | 118-941 |
| 42 | 600 × 800 × 210 | 118-942 |
| 43 | 600 × 800 × 250 | 118-943 |
| 44 | 600 × 800 × 300 | 118-944 |
| 45 | 600 × 800 × 400 | 118-945 |
| 46 | 600 × 1000 × 250 | 118-946 |
| 47 | 600 × 1000 × 300 | 118-947 |
| 48 | 600 × 1000 × 400 | 118-948 |
| 49 | 600 × 1200 × 250 | 118-949 |
| 50 | 600 × 1200 × 300 | 118-950 |
| 51 | 600 × 1200 × 400 | 118-951 |
| 52 | 800 × 600 × 250 | 118-952 |
| 53 | 800 × 600 × 300 | 118-953 |
| 54 | 800 × 800 × 210 | 118-954 |
| 55 | 800 × 800 × 250 | 118-955 |
| 56 | 800 × 800 × 300 | 118-956 |
| 57 | 800 × 800 × 400 | 118-957 |
| 58 | 800 × 1000 × 250 | 118-958 |
| 59 | 800 × 1000 × 300 | 118-959 |
| 60 | 800 × 1000 × 400 | 118-960 |
| 61 | 800 × 1200 × 250 | 118-961 |
| 62 | 800 × 1200 × 300 | 118-962 |
| 63 | 800 × 1200 × 400 | 118-963 |
