132MVA Power Transformer Control Cabinet
This 132MVA transformer control cabinet is designed to supply power to a complex of buildings in a recreational themed village in Northern Ireland, including a hotel, swimming pool, restaurants, gyms, spa, amphitheatre, and retail shops.
- Supply Voltage: 400V AC
- Control Voltage: 230V AC
- Rated Current: 80A
- Standard: UK
- Ingress Protection: IP66
- Corrosion Protection: C5M
- Operating Temperature Range: –25°C to 40°C
- Implementation Date: September 2019

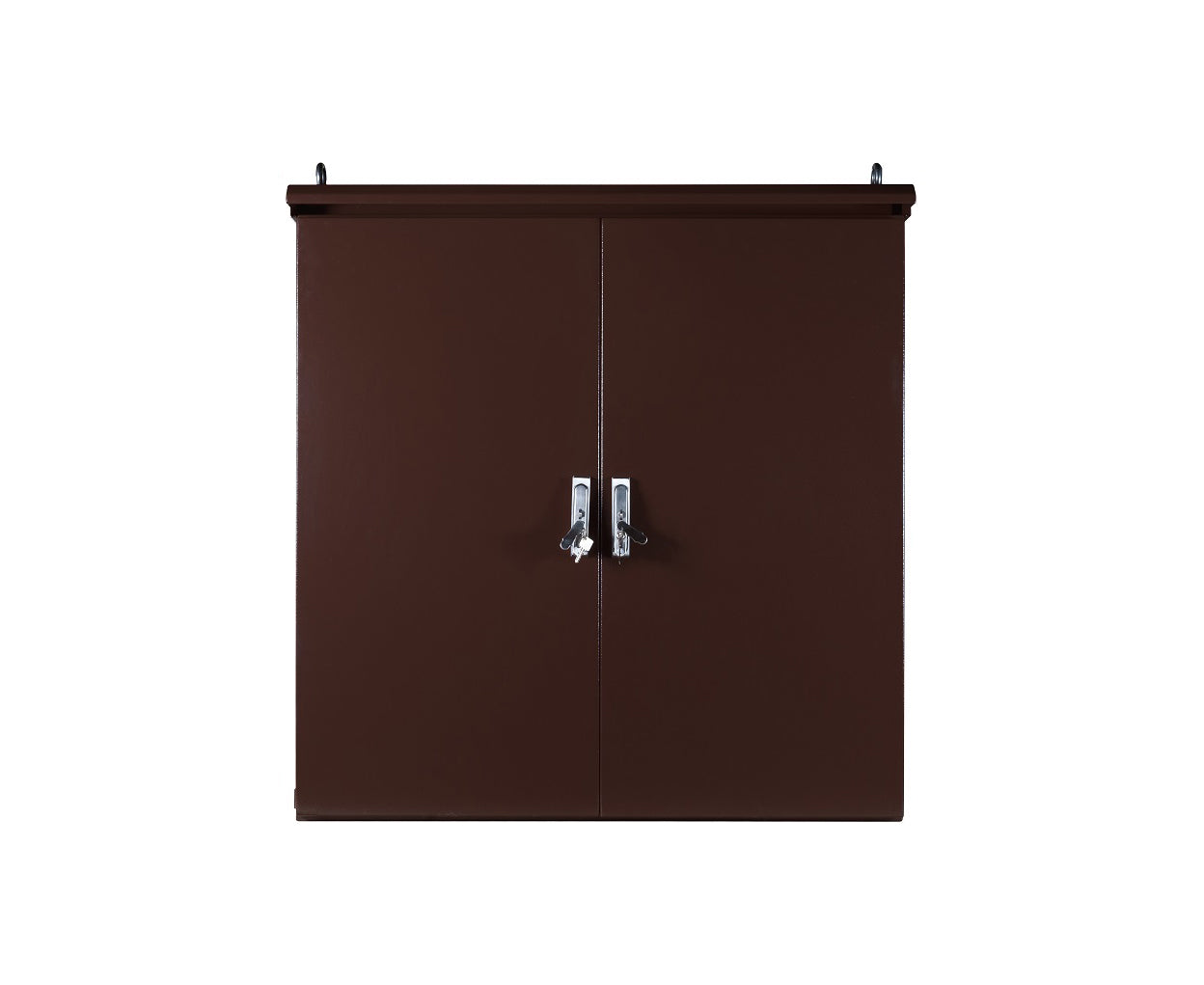

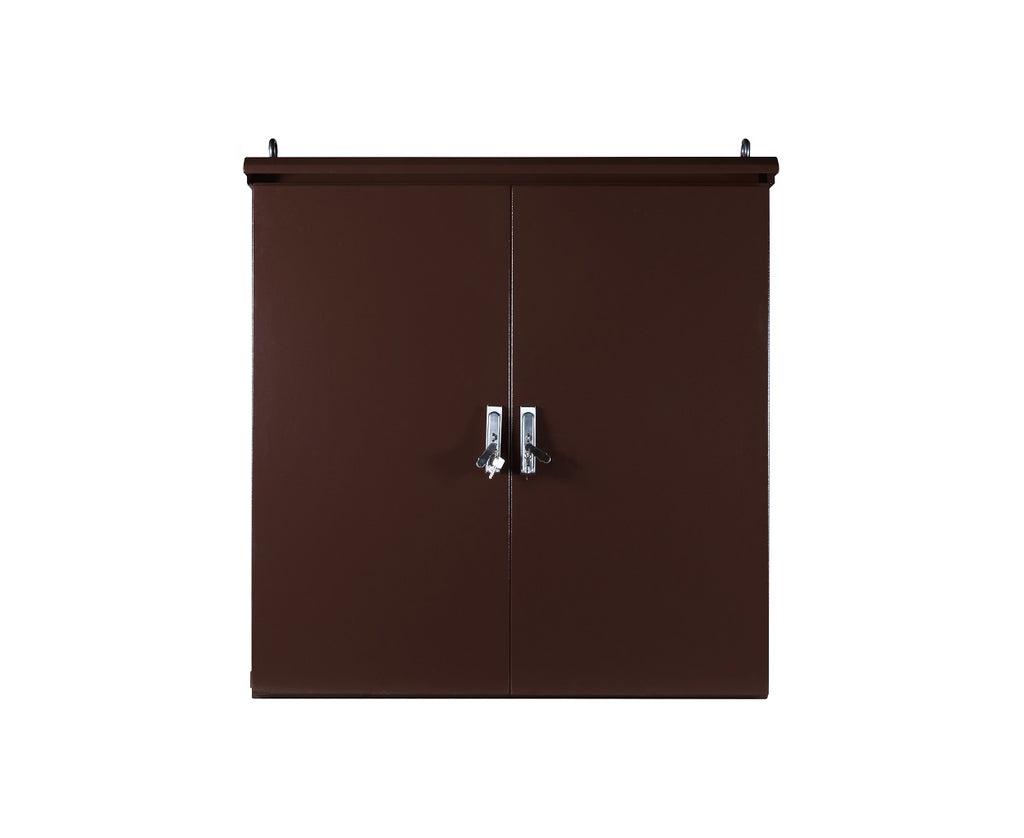

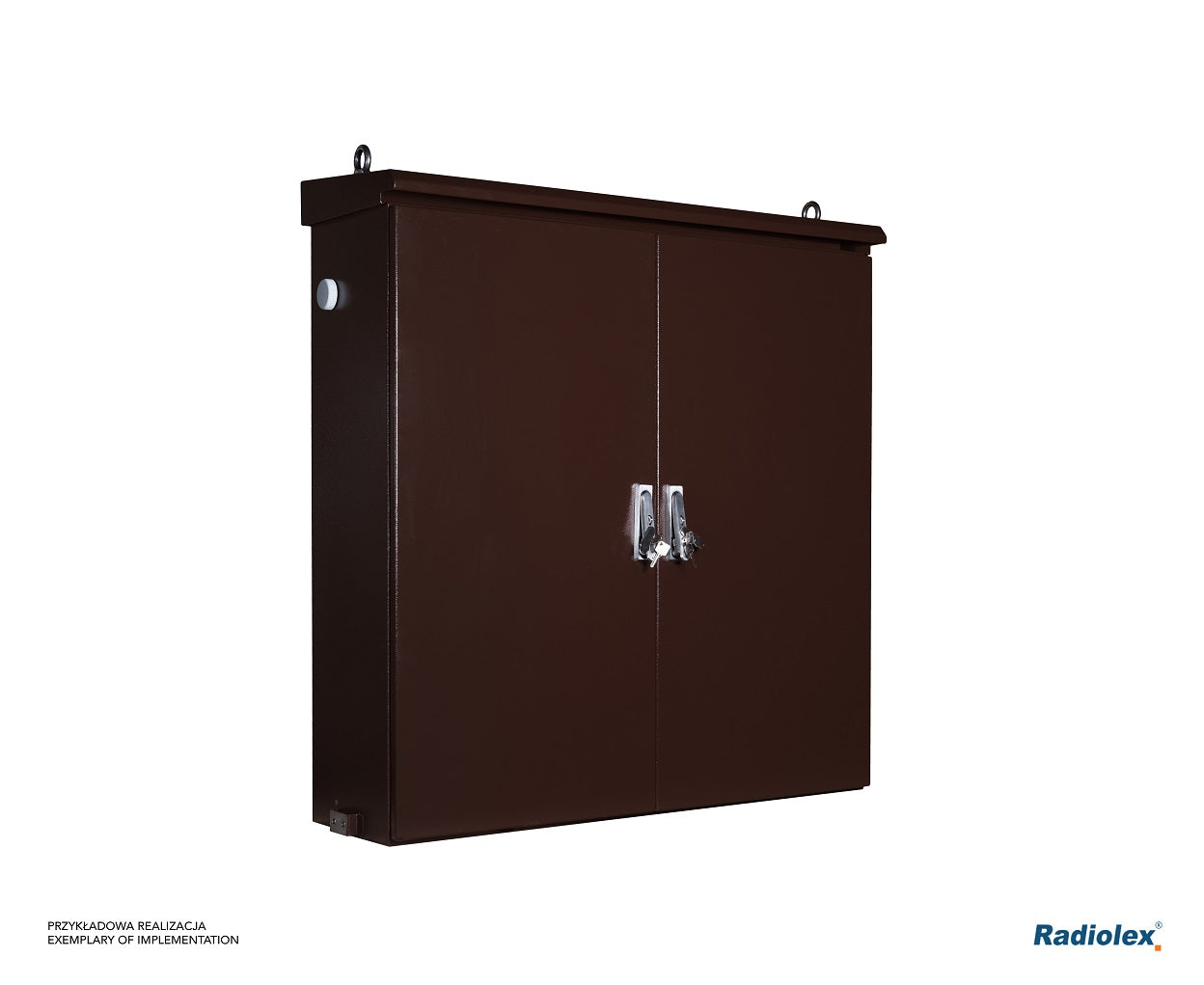

Switchboard Details
- Dimensions: 1200mm x 1200mm x 350mm
- Type: SZB-OH – large acid-resistant steel housing, IP66
- Colour: RAL8017
- Manufacturer: Radiolex
- Model: 126-245.001 – SZB-OH 12001200350 – Switchgear housing

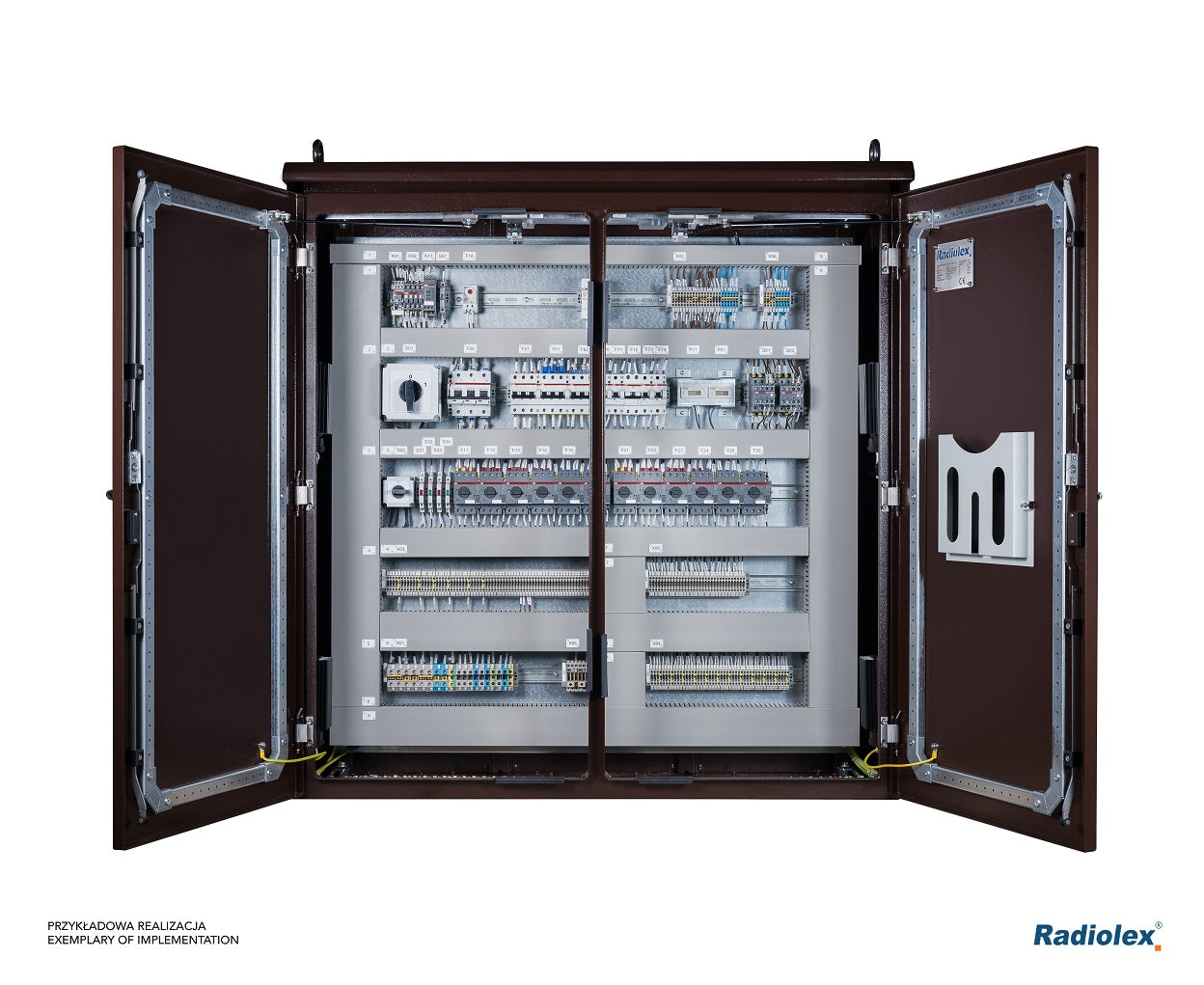

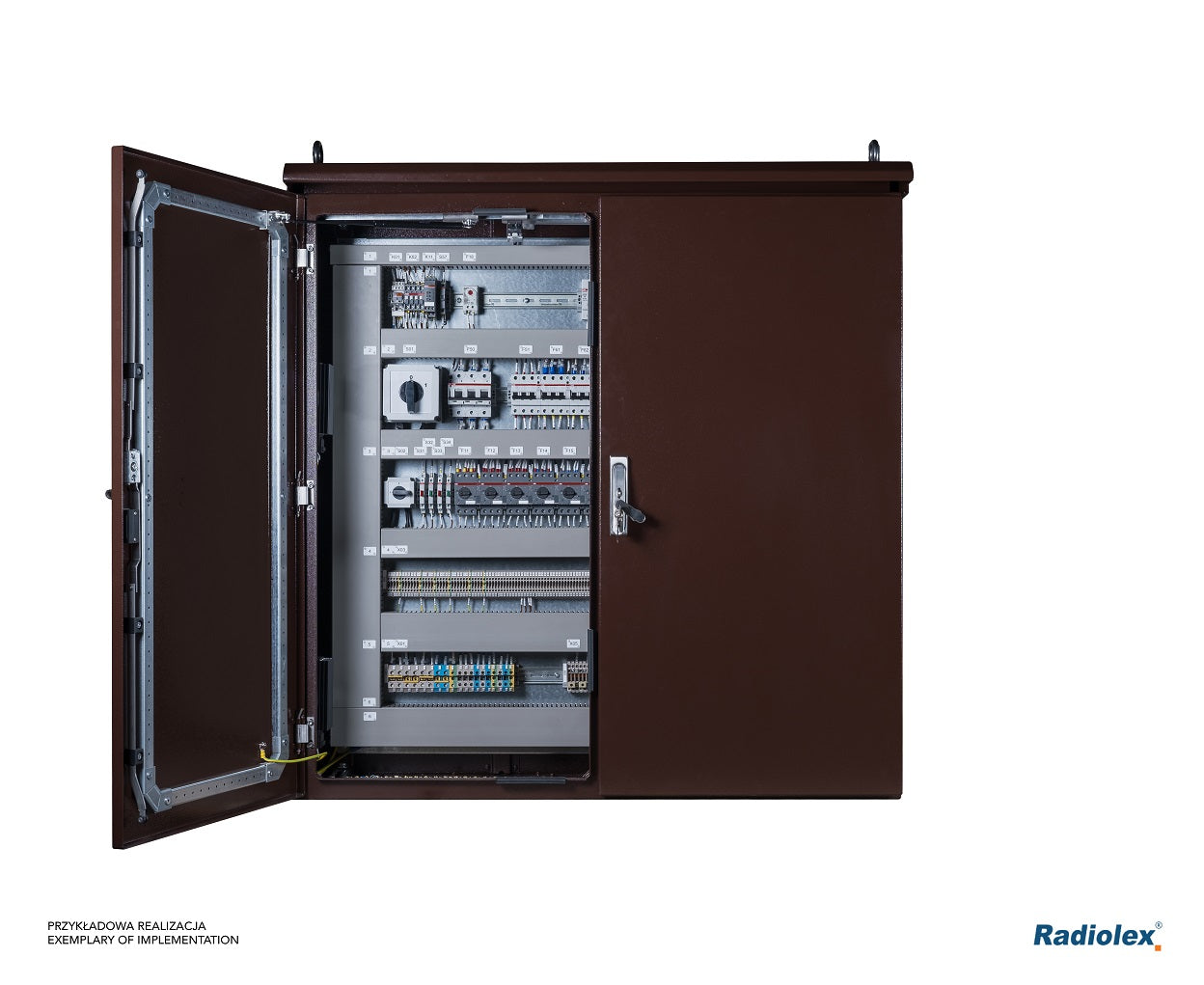

ABB Equipment
- MS116-6.3 – Motor circuit breaker 3P 0.75kW 1.6-2.5A
- S803S-C80 – Overcurrent breaker 3P MCB, type C 80A
- DS 201-B16 AC30 – Residual-current overcurrent breaker 2P, type B 16A 30mA
- CR-M230AC4L – Power relay 230V AC 6A
- CR-M4SS – Relay socket 4P 250V 16A
- N22E 220-230V – Contactor relay
- CT-WBS.22S – Multifunction time relay
- A 30-30-10 220 – Contactor 1Z 230V 50Hz
- E218-16-11 – Modular switch 16A 250V AC
- M1363 – Modular socket 13A 250V, UK standard
STEGO Equipment
- LED025 – LED lamp 5W 100-240V
- HG140 – Semiconductor heater 150W 120-240V AC/DC
- KTO011 – Thermostat 1NC, 0 to +60°C
Other Equipment
- CLG-13T 230V – Operating hours counter 110-240V AC/DC, F&F
- 4G63-99-PK – Cam switch 3P 1-0-2 63A, Apator
- 4G10-69-PK – Cam switch 3P 10A Auto-Manual, Apator
- KXCBS11 – Limit switch 1Z 1R, Lovato
