RSA-SN-ATEX – Switchgear up to 6kV
RSA-SN-ATEX Switchgears

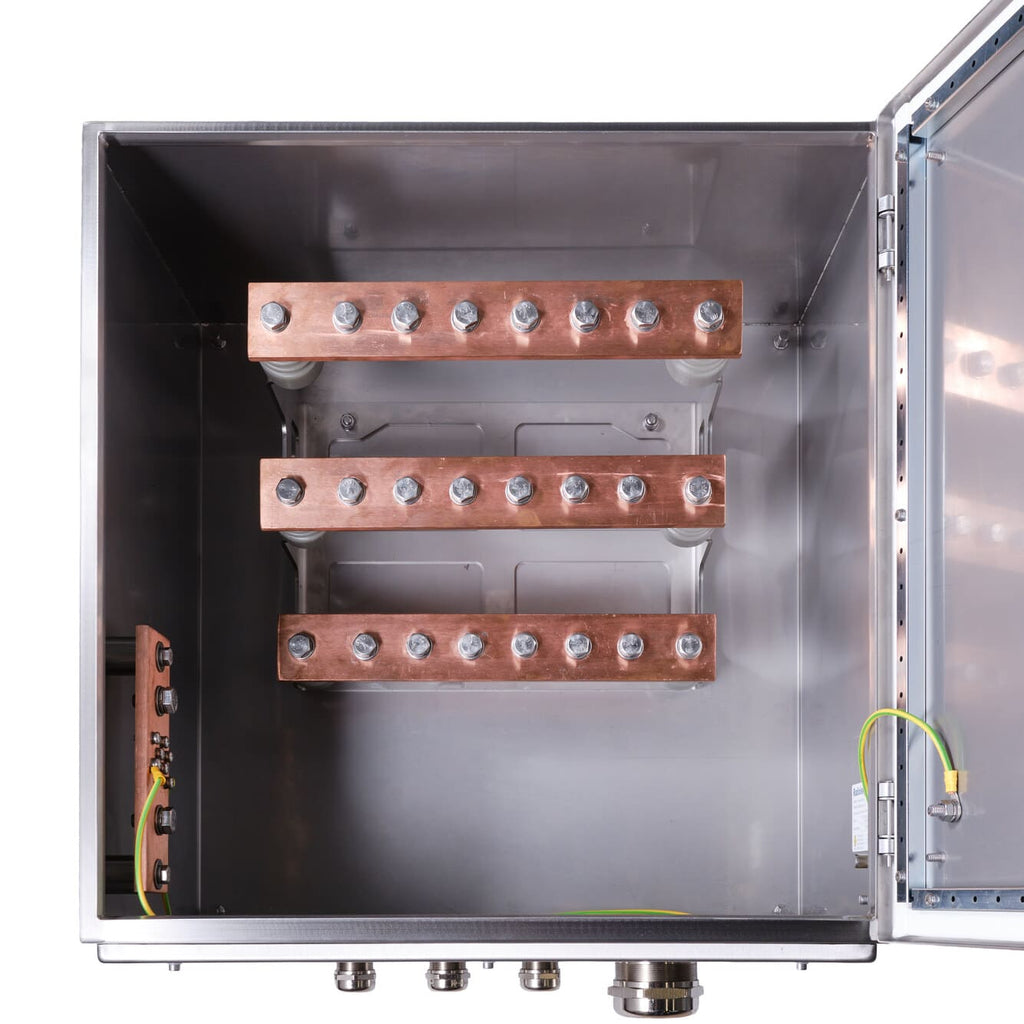

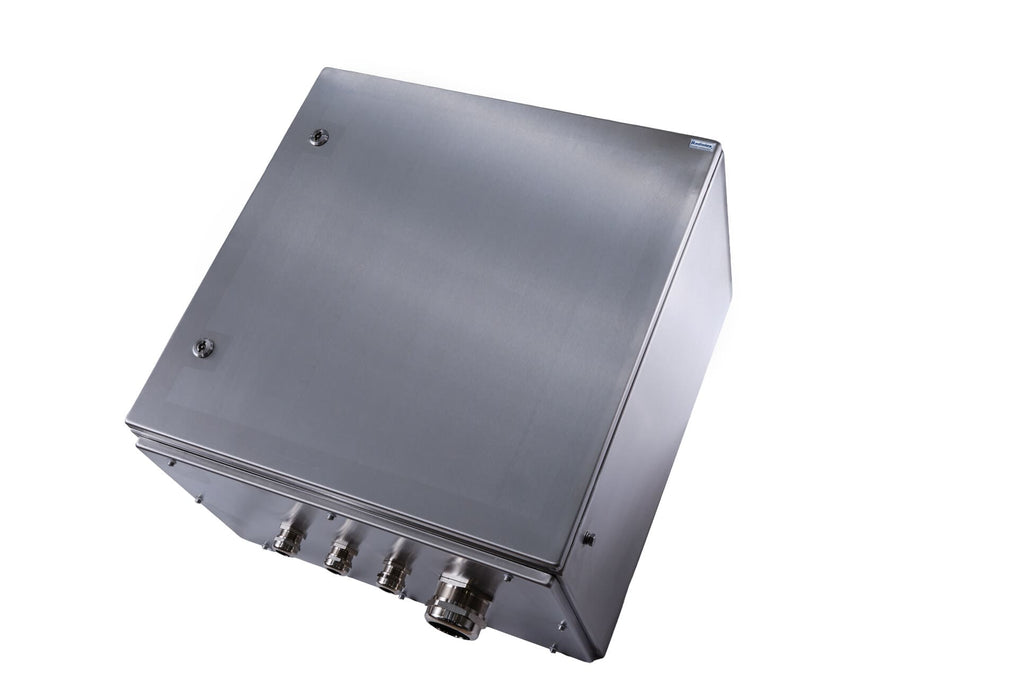

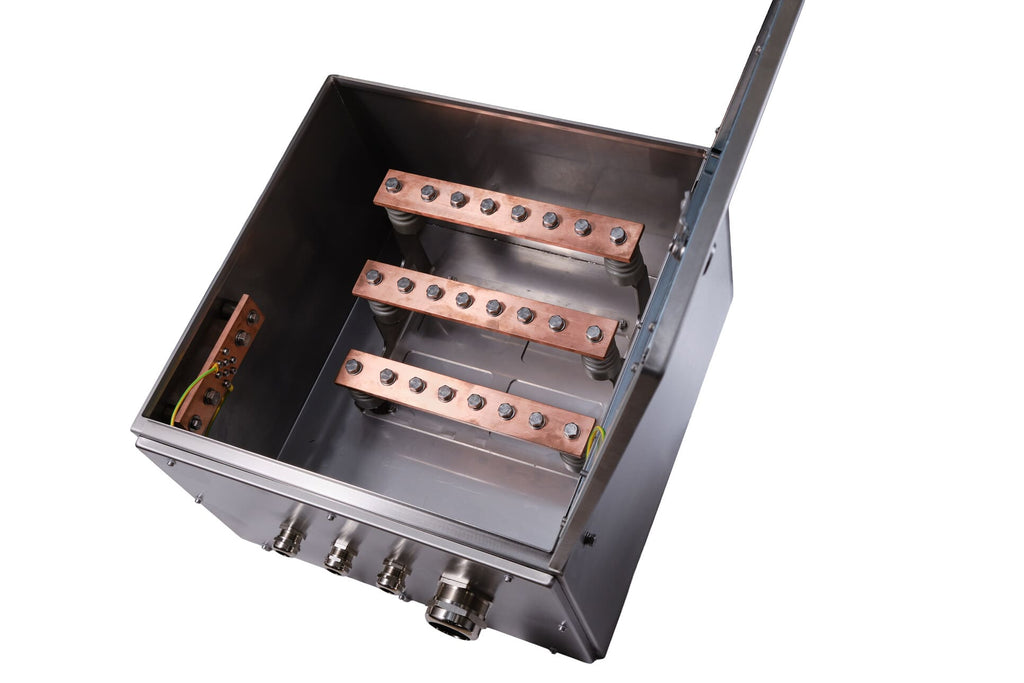

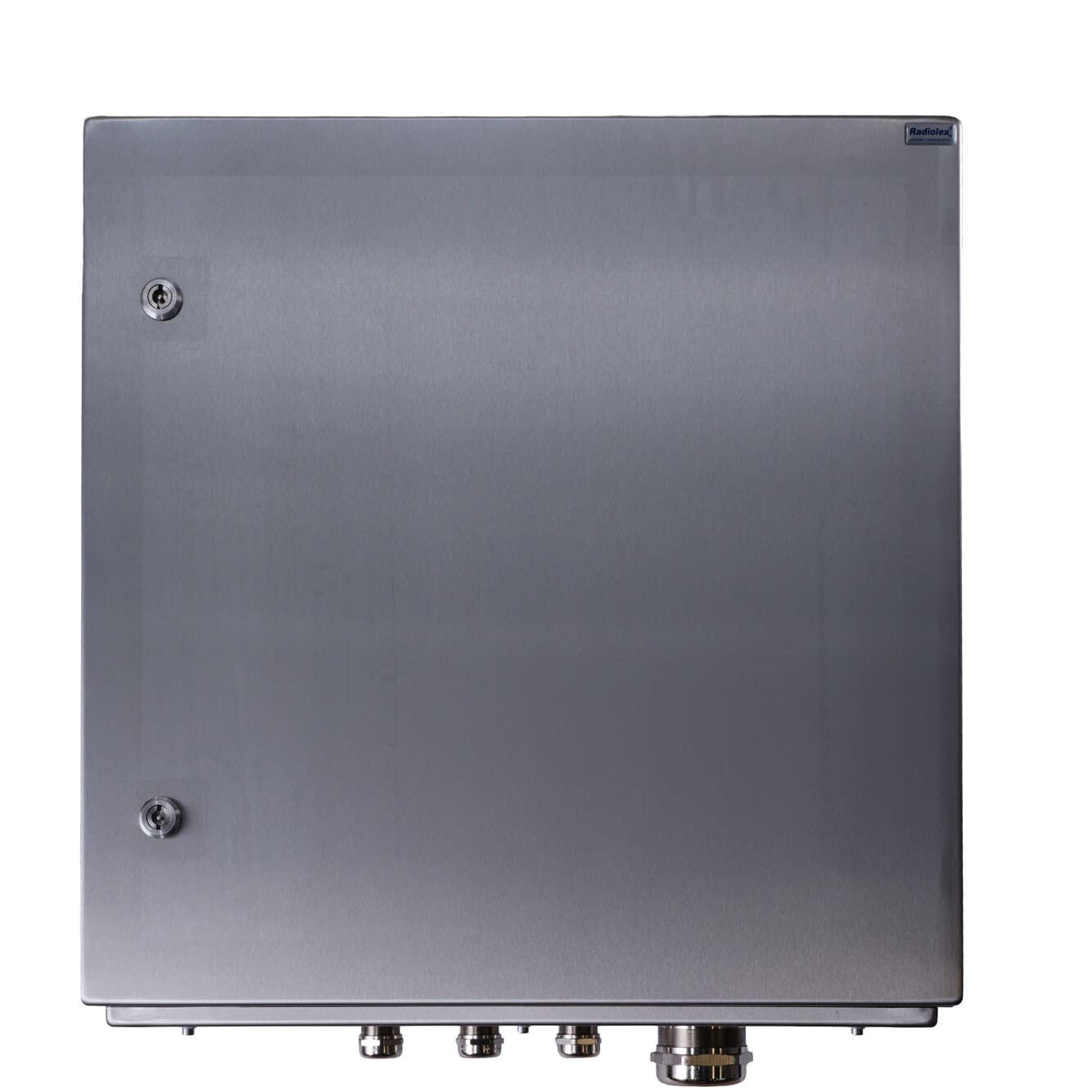

RSA-SN-ATEX switchgears are intended for cable connections in DC and AC circuits with voltages up to 6 kV. The enclosures are manufactured from stainless steel AISI 304 (-OH) or acid-resistant AISI 316L (-KO). Depending on the version, the switchgears are available with either doors or a cover. These units are suitable for use in ATEX zones 1, 2 (gases) and 21, 22 (dust).
General Information
- Rated voltage: up to 6 kV
- Rated current: up to 300 A
- Material: stainless steel AISI 304 (OH) or 316L (KO)
- Protection degree: IP66
- Closure: doors (RSA-ATEX) or cover (RSA-ATEX-R2)
- Ambient temperature range: -30°C to +40°C
- Possible openings: sizes M12–M63, blanking plugs, cable glands

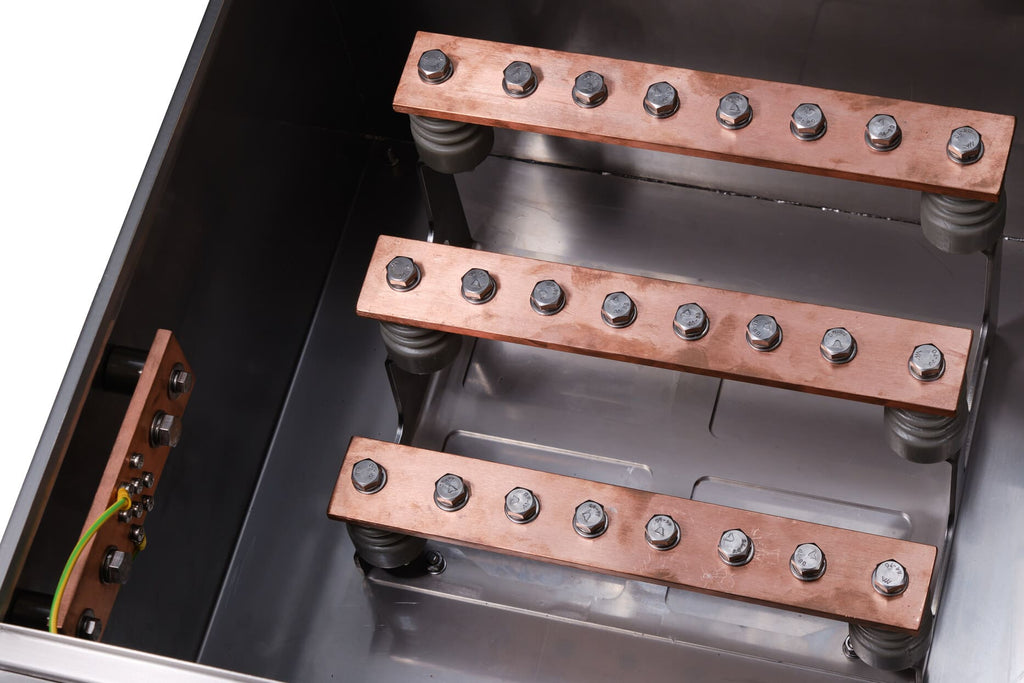

- Terminals: tubular ring, V-clamp
- Number of terminals: up to 6 per phase
- Maximum cable/terminal cross-section: 240 mm²
- Terminal screw: M12
Code Structure
Catalog code: 116-Axx.B.C.D
- A = 4 (AISI 304), 5 (AISI 316L)
- B = 0 (enclosure with doors), 1 (enclosure with cover)
- C = 0 (with cable gland plate), 1 (solid bottom)
- D = cable entry configuration*
RSA-SN-ATEX Switchgear Housing Dimensions
| No. | Dimensions of the matching housing (W × H × D, mm) |
Marking xx in the code | Description to the price list in CRM |
|---|---|---|---|
| 1 | 600 × 600 × 400 | 41 | RSA-SN-ATEX 600*600*400 Switchgear up to 6kV |
| 2 | 600 × 800 × 400 | 45 | RSA-SN-ATEX 600*800*400 Switchgear up to 6kV |
| 3 | 600 × 1000 × 400 | 48 | RSA-SN-ATEX 600*1000*400 Switchgear up to 6kV |
| 4 | 600 × 1200 × 400 | 51 | RSA-SN-ATEX 600*1200*400 Switchgear up to 6kV |
| 5 | 800 × 800 × 400 | 57 | RSA-SN-ATEX 800*800*400 Switchgear up to 6kV |
| 6 | 800 × 1000 × 400 | 60 | RSA-SN-ATEX 800*1000*400 Switchgear up to 6kV |
| 7 | 800 × 1200 × 400 | 63 | RSA-SN-ATEX 800*1200*400 Switchgear up to 6kV |
