| Type | Corrosivity category | Material / additional description | Coating |
|---|---|---|---|
| OZ-ATEX-OH | C4** | Stainless steel 1.4301 (AISI 304) | Brushed |
| OZ-ATEX-KO | CX** | Acid-proof steel 1.4404 (AISI 316L) | Brushed |
OZ-ATEX Wall-Mounted Enclosure

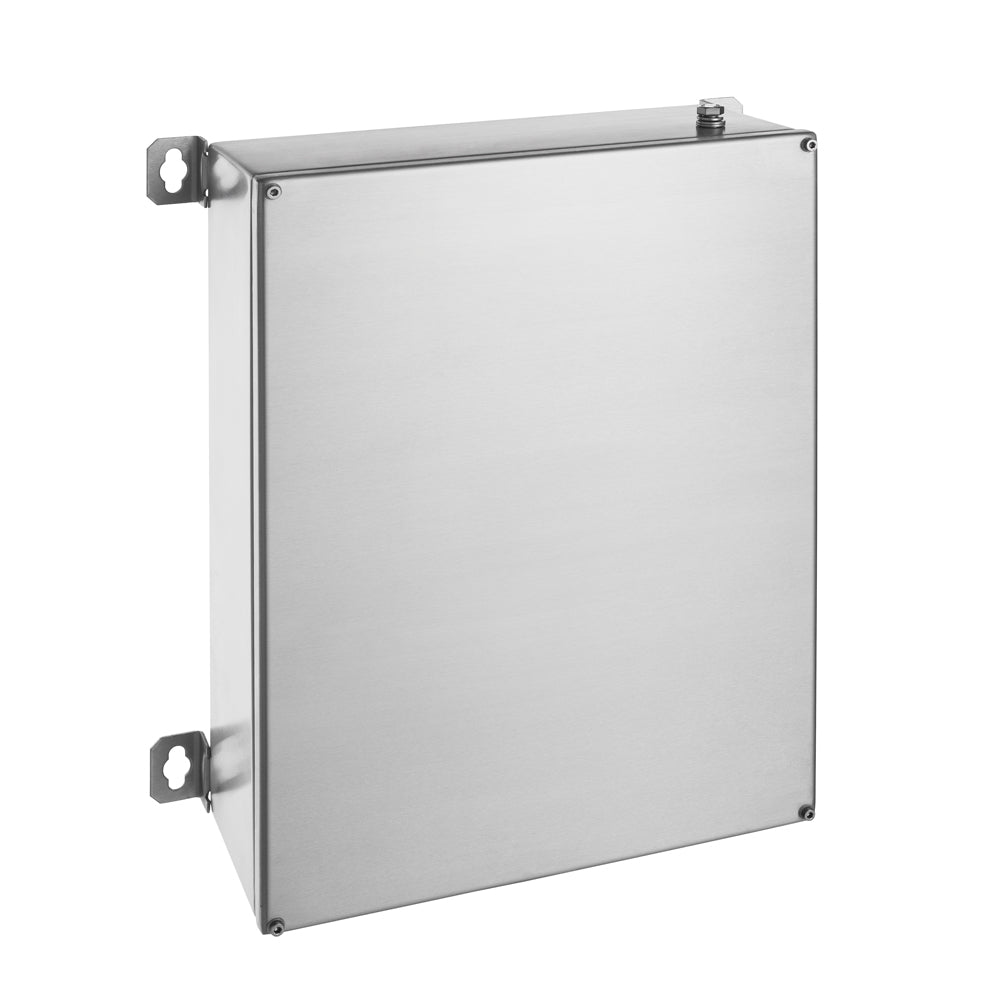

OZ-ATEX is a compact wall-mounted enclosure designed for use in potentially explosive atmospheres. Available in 24 standard sizes, it offers high ingress protection and reliable performance. Detailed tables with catalogue numbers can be found in the following pages of the catalogue.
General Information
- Ingress Protection: IP66
- Operating Temperature: –20°C to +80°C
- Impact Resistance: IK08
- ATEX Identification: II 2G Ex eb II Gb, II 2D Ex tb IIIC Db
- Compliance: PN-EN 60079:2013 (EN 60079-0:2012), PN-EN 60079-7:2016 (EN 60079-7:2007), PN-EN 60079-31:2014 (EN 60079-31:2014)
- Certification: EC Type Testing Certificate No. OBAC 15 ATEX 0203U
Construction & Features
- Body: Welded monobloc design
- Closure: Cover secured with four screws and lock washers for a tight seal
- Grounding: Threaded grounding studs in both the cover and enclosure body

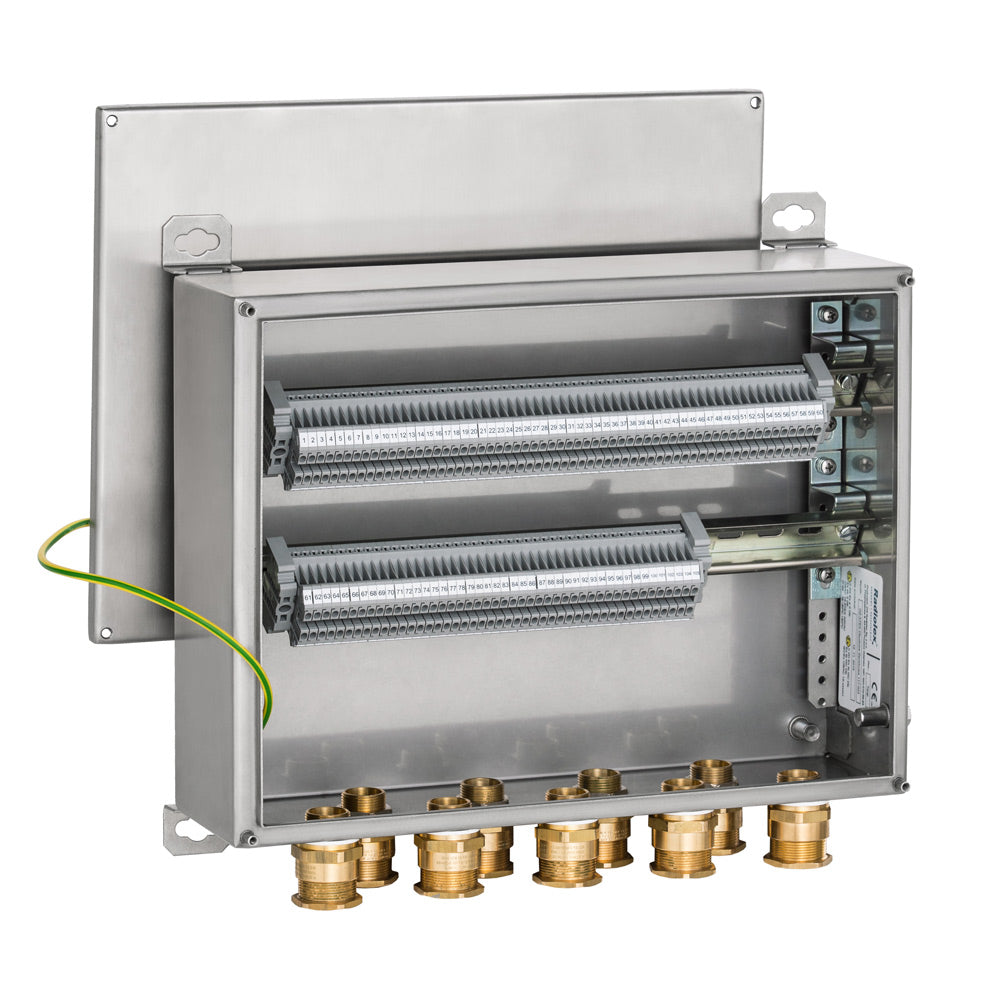

- Mounting: Perforated angle bars for TS-35 rail or mounting plate; removable wall brackets included
Additional Options
- Custom dimensions
- Punching in the door, body, or mounting plate
- Painting in any RAL colour
The following table presents enclosures equipped with a mounting plate.
| No. | Dimensions (W × H × D, mm) | Catalogue No. OZ-ATEX-OH | Catalogue No. OZ-ATEX-KO |
|---|---|---|---|
| 1 | 150 × 150 × 80 | 117-001 | 117-101 |
| 2 | 200 × 150 × 80 | 117-002 | 117-102 |
| 3 | 200 × 200 × 80 | 117-003 | 117-103 |
| 4 | 200 × 250 × 80 | 117-004 | 117-104 |
| 5 | 250 × 250 × 80 | 117-005 | 117-105 |
| 6 | 250 × 300 × 80 | 117-006 | 117-106 |
| 7 | 300 × 300 × 80 | 117-007 | 117-107 |
| 8 | 400 × 300 × 80 | 117-008 | 117-108 |
| 9 | 150 × 150 × 100 | 117-009 | 117-109 |
| 10 | 200 × 150 × 100 | 117-010 | 117-110 |
| 11 | 200 × 200 × 100 | 117-011 | 117-111 |
| 12 | 200 × 250 × 100 | 117-012 | 117-112 |
| 13 | 250 × 250 × 100 | 117-013 | 117-113 |
| 14 | 250 × 300 × 100 | 117-014 | 117-114 |
| 15 | 300 × 300 × 100 | 117-015 | 117-115 |
| 16 | 400 × 300 × 100 | 117-016 | 117-116 |
| 17 | 150 × 150 × 120 | 117-017 | 117-117 |
| 18 | 200 × 150 × 120 | 117-018 | 117-118 |
| 19 | 200 × 200 × 120 | 117-019 | 117-119 |
| 20 | 200 × 250 × 120 | 117-020 | 117-120 |
| 21 | 250 × 250 × 120 | 117-021 | 117-121 |
| 22 | 250 × 300 × 120 | 117-022 | 117-122 |
| 23 | 300 × 300 × 120 | 117-023 | 117-123 |
| 24 | 400 × 300 × 120 | 117-024 | 117-124 |
