| Type | Corrosivity category | Material | Coating |
|---|---|---|---|
| SZK-B | C4 | galvanised sheet sheet | RAL7035 |
INNOVATIVE GALVAR® TECHNOLOGY - ADHESION INSTEAD OF WELDING
Radiolex Patent number: Pat.237638

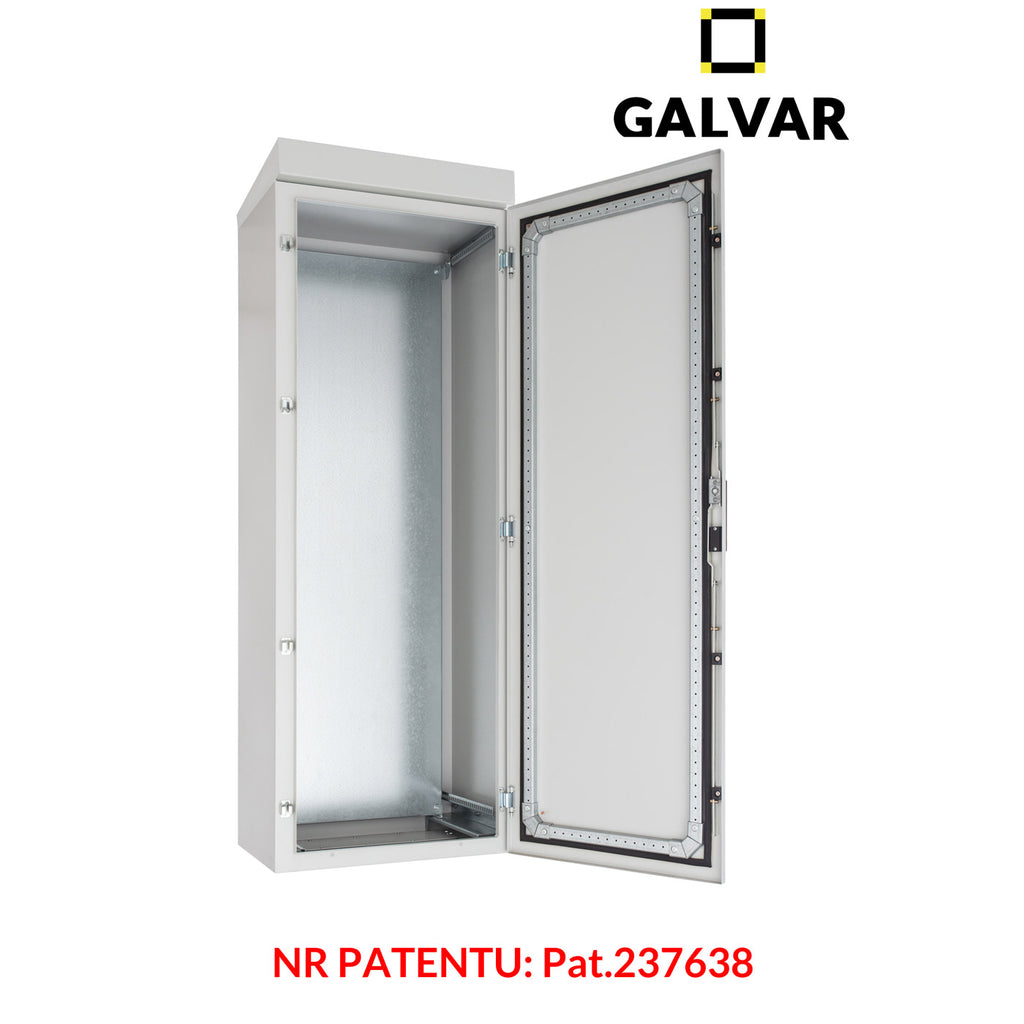

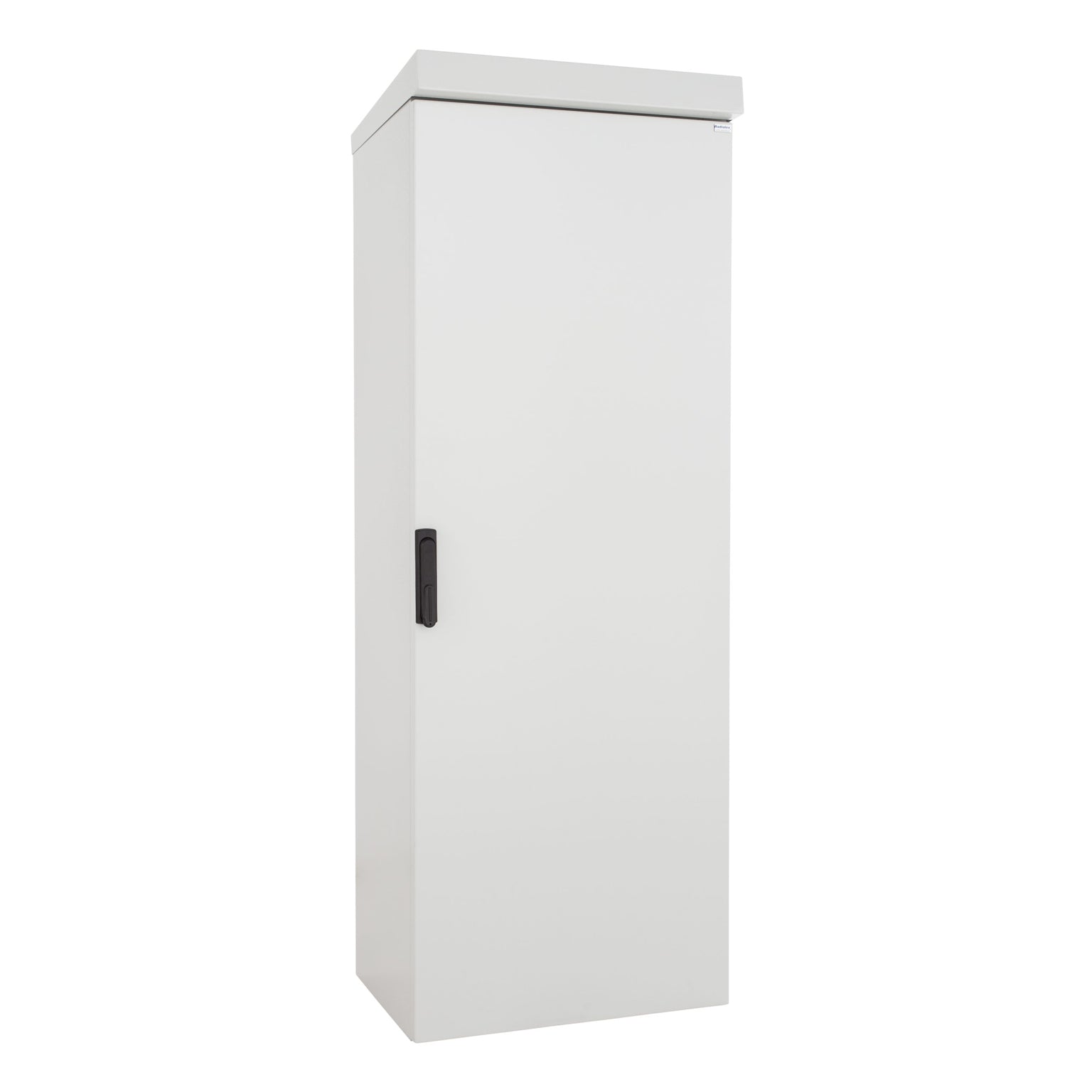

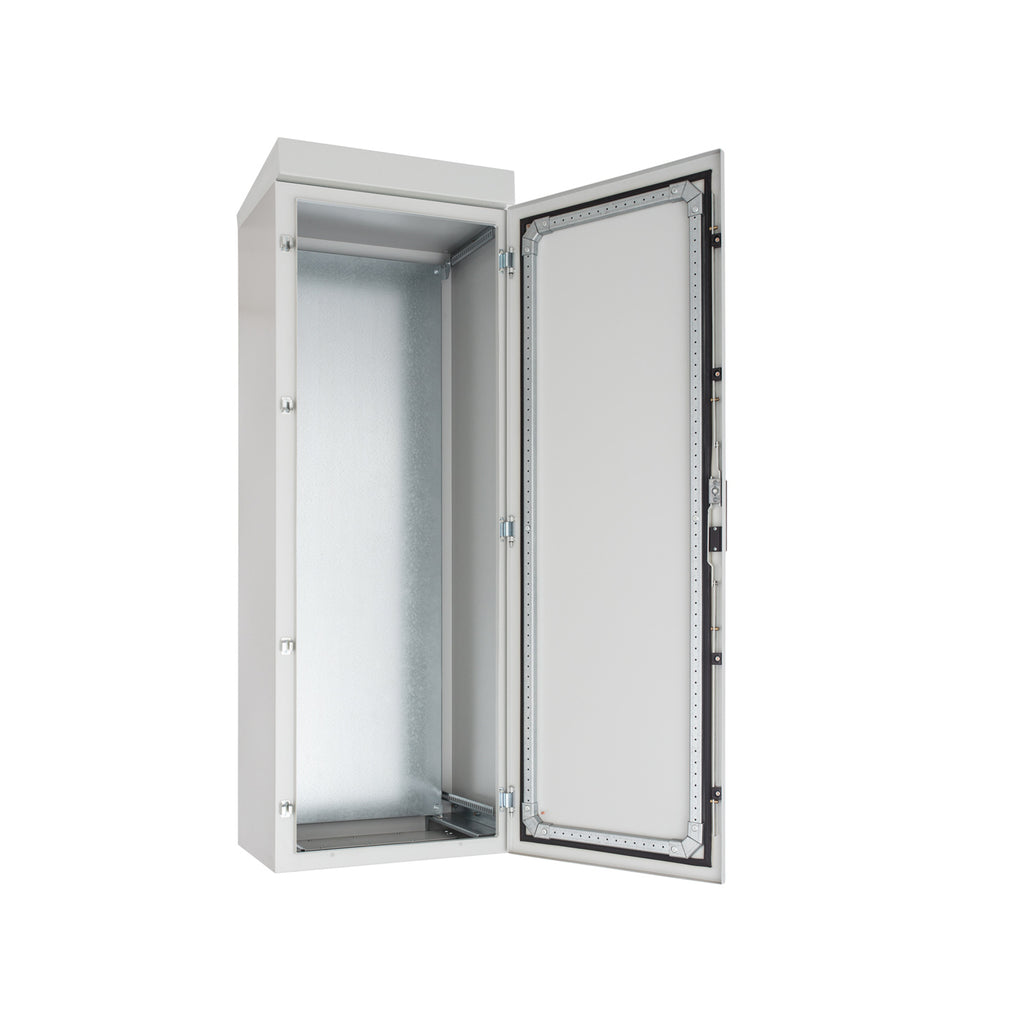

SZK-B Free-Standing Enclosures
The SZK-B is a large, free-standing enclosure built with patented GALVAR® bonding and riveting technology. This innovative process eliminates welding, preserving the zinc coating of steel sheets and delivering exceptional corrosion resistance.
Innovative GALVAR® Technology
- Protective zinc coating remains intact
- High joint tightness ensured by bonding
- Compatible with different materials
- Optional 5-year warranty
General Information
- Ingress Protection: IP55 (IP66 on request)
- Impact Resistance: IK10
- Operating Temperature Range: –40°C to +80°C
For enclosures requiring higher ingress protection, please specify this in your inquiry.
Main Specifications
- Body: assembled construction
- Roof: bolted to the enclosure body
- Closure: hinged door with a 105° opening angle; handle-type lock with snap-in key insert option
- Enclosures ≥1000 mm wide are supplied with double-leaf doors
- Mounting Plate: 2 mm galvanized steel on perforated brackets with adjustable depth
- Cable Entry: bottom gland plate (dimensions depend on enclosure width)
- Earthing: threaded grounding studs on the door and enclosure body
- Door includes an internal reinforced frame made of perforated profiles for easy component mounting
Optional Features

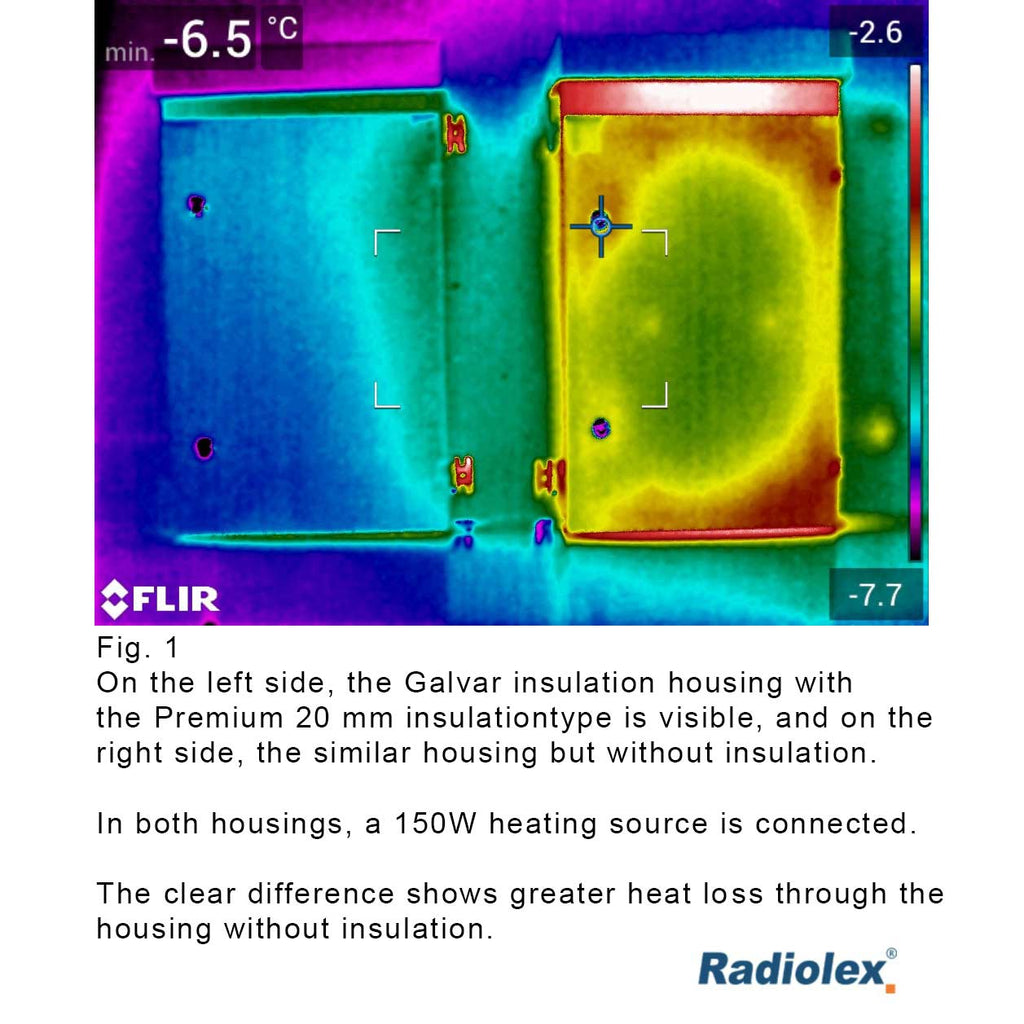

- Thermal insulation
- Extended operating temperature range: –50°C to +120°C
- Custom dimensions
- Pre-drilled holes in the door, body, or mounting plate
- Painting in any RAL colour
Enclosures – Dimensions and Catalogue Numbers
| No. | Dimensions (W × H × D, mm) |
Catalogue No. SZK-B |
|---|---|---|
| 1 | 600 × 1400 × 300 | 126-901 |
| 2 | 600 × 1400 × 400 | 126-902 |
| 3 | 600 × 1600 × 300 | 126-903 |
| 4 | 600 × 1600 × 400 | 126-904 |
| 5 | 600 × 1800 × 300 | 126-905 |
| 6 | 600 × 1800 × 400 | 126-906 |
| 7 | 600 × 2000 × 300 | 126-907 |
| 8 | 600 × 2000 × 400 | 126-908 |
| 9 | 600 × 2000 × 500 | 126-909 |
| 10 | 600 × 2000 × 600 | 126-910 |
| 11 | 800 × 1400 × 300 | 126-911 |
| 12 | 800 × 1400 × 400 | 126-912 |
| 13 | 800 × 1600 × 300 | 126-913 |
| 14 | 800 × 1600 × 400 | 126-914 |
| 15 | 800 × 1800 × 300 | 126-915 |
| 16 | 800 × 1800 × 400 | 126-916 |
| 17 | 800 × 1800 × 500 | 126-917 |
| 18 | 800 × 1800 × 600 | 126-918 |
| 19 | 800 × 2000 × 300 | 126-919 |
| 20 | 800 × 2000 × 400 | 126-920 |
| 21 | 800 × 2000 × 500 | 126-921 |
| 22 | 800 × 2000 × 600 | 126-922 |
| 23 | 1000 × 800 × 250 | 126-923 |
| 24 | 1000 × 800 × 300 | 126-924 |
| 25 | 1000 × 800 × 400 | 126-925 |
| 26 | 1000 × 1000 × 250 | 126-926 |
| 27 | 1000 × 1000 × 300 | 126-927 |
| 28 | 1000 × 1000 × 400 | 126-928 |
| 29 | 1000 × 1200 × 250 | 126-929 |
| 30 | 1000 × 1200 × 300 | 126-930 |
| 31 | 1000 × 1200 × 400 | 126-931 |
| 32 | 1000 × 1400 × 300 | 126-932 |
| 33 | 1000 × 1400 × 400 | 126-933 |
| 34 | 1000 × 1600 × 300 | 126-934 |
| 35 | 1000 × 1600 × 400 | 126-935 |
| 36 | 1000 × 1800 × 300 | 126-936 |
| 37 | 1000 × 1800 × 400 | 126-937 |
| 38 | 1000 × 2000 × 300 | 126-938 |
| 39 | 1000 × 2000 × 400 | 126-939 |
| 40 | 1000 × 2000 × 500 | 126-940 |
| 41 | 1200 × 800 × 300 | 126-941 |
| 42 | 1200 × 800 × 400 | 126-942 |
| 43 | 1200 × 1000 × 300 | 126-943 |
| 44 | 1200 × 1000 × 400 | 126-944 |
| 45 | 1200 × 1200 × 300 | 126-945 |
| 46 | 1200 × 1200 × 400 | 126-946 |
| 47 | 1200 × 1400 × 400 | 126-947 |
| 48 | 1200 × 1600 × 300 | 126-948 |
| 49 | 1200 × 1600 × 400 | 126-949 |
| 50 | 1200 × 1800 × 300 | 126-950 |
| 51 | 1200 × 1800 × 400 | 126-951 |
| 52 | 1200 × 1800 × 500 | 126-952 |
| 53 | 1200 × 2000 × 300 | 126-953 |
| 54 | 1200 × 2000 × 350 | 126-954 |
| 55 | 1200 × 2000 × 400 | 126-955 |
| 56 | 1200 × 2000 × 500 | 126-956 |
| 57 | 1200 × 2000 × 600 | 126-957 |
| 58 | 1600 × 1800 × 400 | 126-958 |
| 59 | 1600 × 1800 × 500 | 126-959 |
| 60 | 1600 × 2000 × 400 | 126-960 |
| 61 | 1600 × 2000 × 500 | 126-961 |
| 62 | 1600 × 2000 × 600 | 126-962 |
