| Type | Corrosivity category | Material | Coating |
|---|---|---|---|
| SZK-A | C4 | galvanized steel sheet | RAL7035 |
Technical Summary
Product Type – SZK-A
Mounting – Wall-mounted or free-standing (with optional plinth)
Material / Finish – Galvar (Zinc-Aluminium-Magnesium coated steel), powder-coated in RAL7035
Corrosion Resistance Class – C4
Impact Resistance – IK10
Ingress Protection – IP66
Temperature Range – –40°C to +80°C
Product Overview

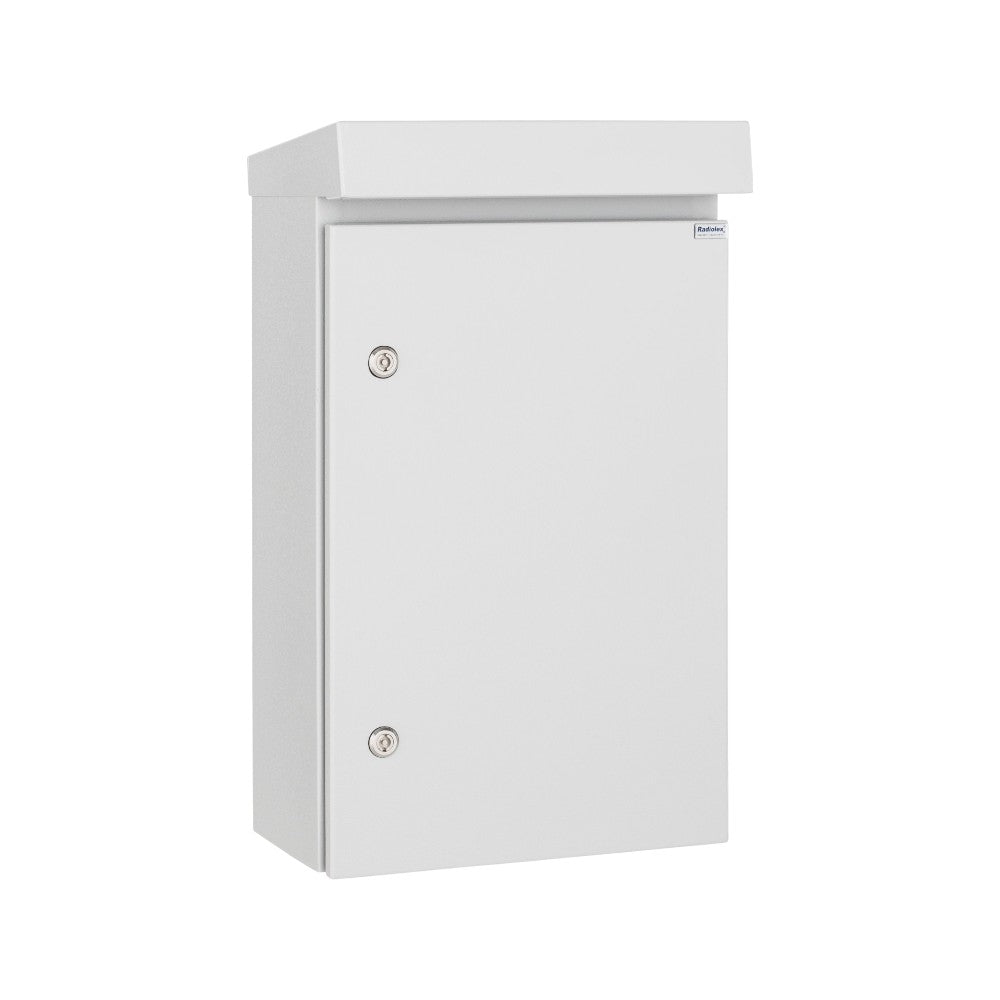

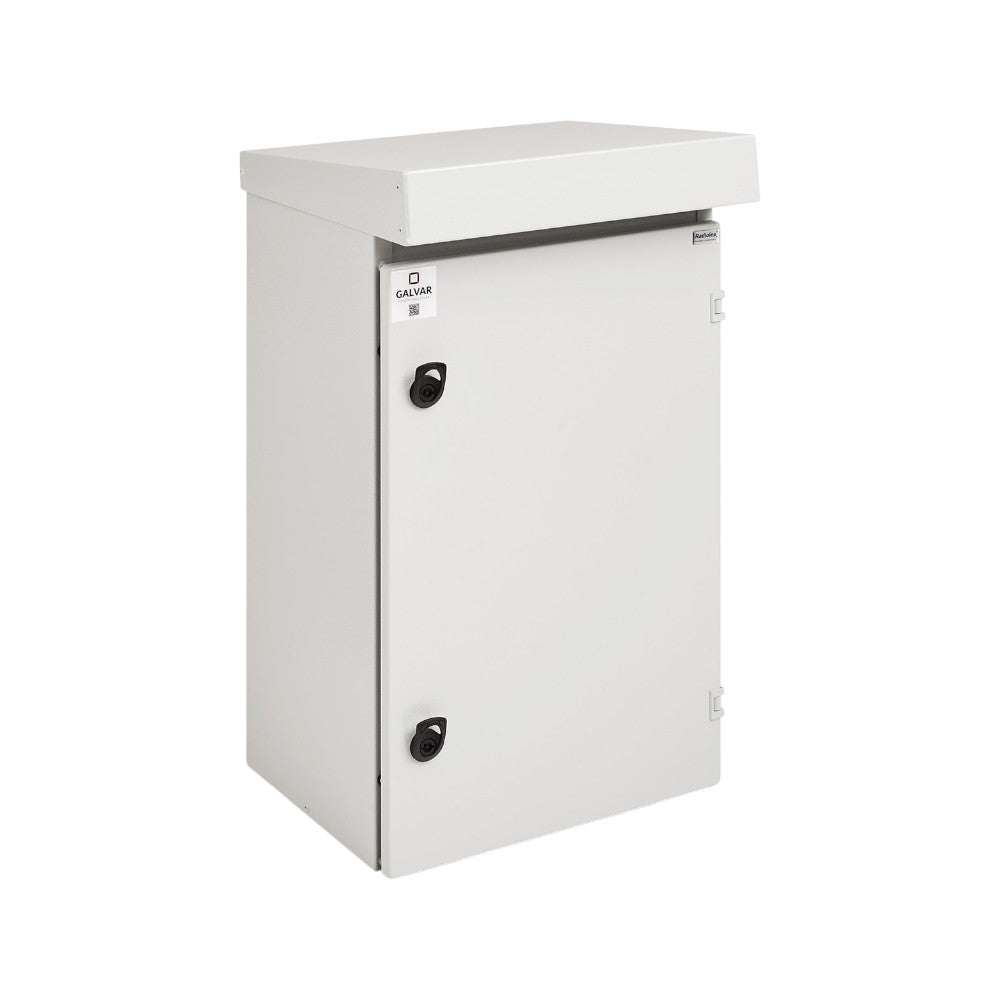

The SZK-A IP66 enclosure is a premium, heavy-duty solution designed for outdoor electrical and industrial installations. Its sloped roof enhances drainage and prevents debris build-up, while the high IP66 rating ensures complete protection against dust and powerful water jets — ideal for harsh environments.
Constructed from Galvar-coated steel (Zinc-Aluminium-Magnesium) and finished in durable RAL7035 powder coating, this enclosure offers superior corrosion resistance, especially in C4-class environments with higher salinity or pollution levels.
Engineered and manufactured in Europe, the SZK-A enclosure benefits from ISO 9001, ISO 14001, and ISO 3834-2 certified processes, ensuring quality, durability, and compliance with relevant EU standards (EN 62208, EN 60529, EN ISO 12944-2).
Key Features
- Sloped roof design improves water runoff and prevents dirt accumulation
- Galvar steel (ZAM coating) provides enhanced corrosion resistance
- Weld-free construction maintains protective coating integrity
- Supplied with D5 lock(s) — 1 for enclosures up to 500 mm height, 2 for taller units
- Includes wall mounting brackets for secure installation
- Optional plinth/base for floor mounting
- Finished in robust RAL7035 polyester powder coating

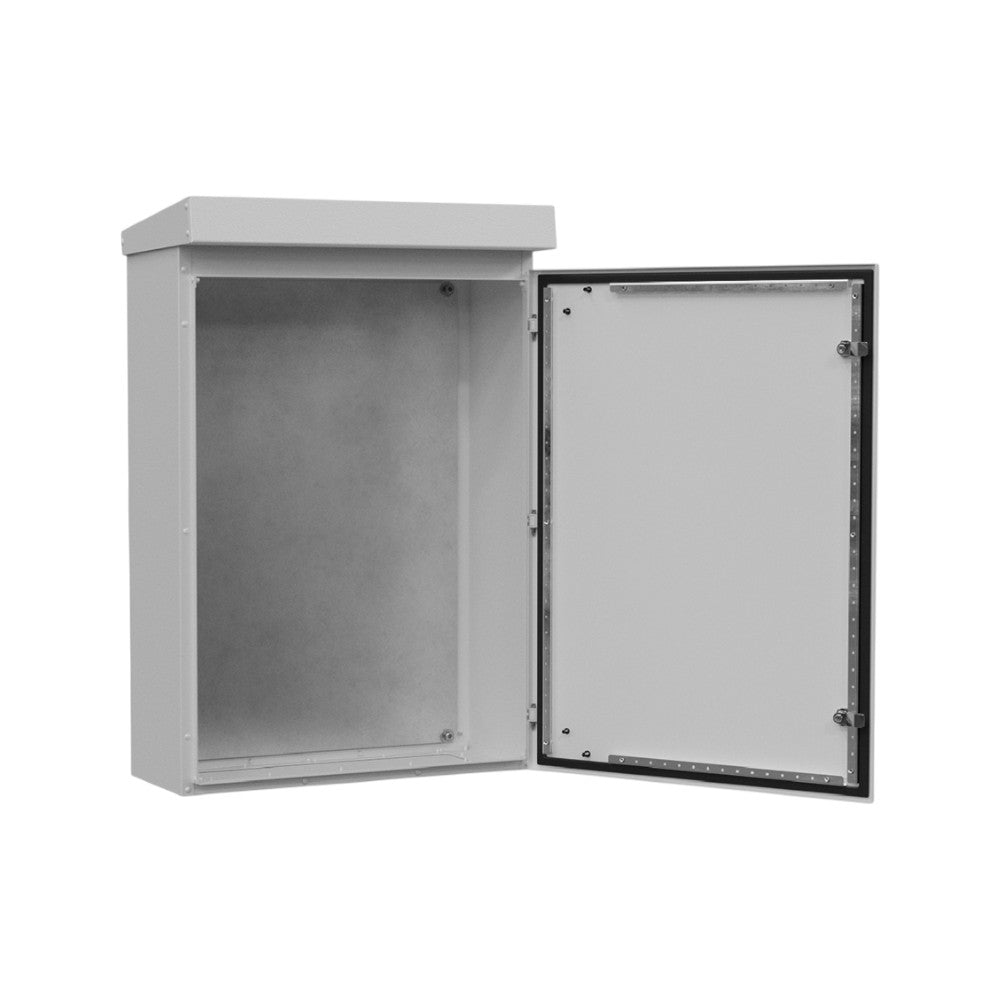

- 105° hinged door with reversible swing direction

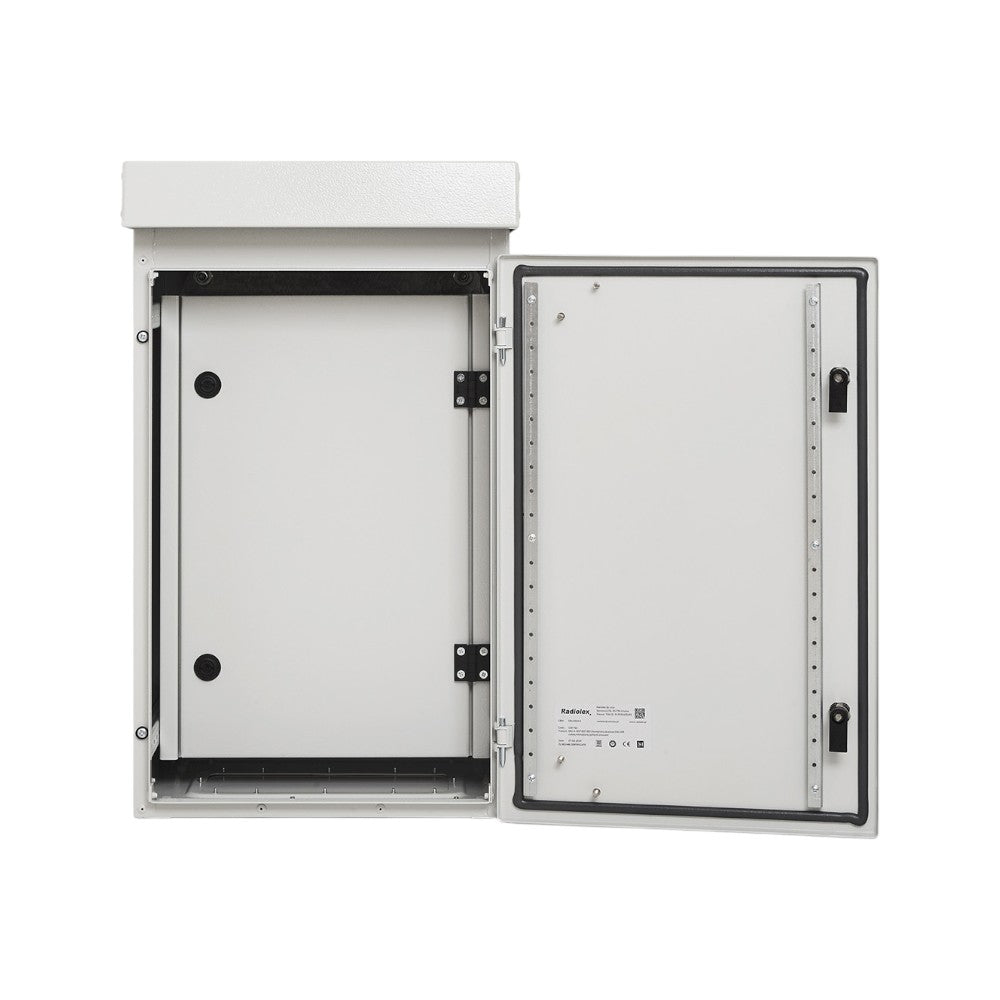

- Internal reinforcing frame for mounting accessories or equipment
- Includes a 3 mm galvanized steel mounting plate
- Gland plate opening on base (size varies by width)
- Earthing studs included in both enclosure body and door
- Rated for C4 environments (industrial zones or coastal areas with moderate salinity)
- IP66-rated for full dust protection and high-pressure water jet resistance
- Optional 5-year extended warranty
Customisation Options
- Thermal insulation for temperature-sensitive installations
- Extended temperature range: –40°C to +80°C
- Custom dimensions or pre-punched cut-outs in door, body, or mounting plate
- Paintable in any RAL colour to meet project design requirements
The following table presents enclosures equipped with a mounting plate.
| No. | Dimensions (W × H × D mm) | Catalogue No. SZK-A |
|---|---|---|
| 1 | 200 × 300 × 150 | 118-901 |
| 2 | 300 × 200 × 150 | 118-902 |
| 3 | 300 × 300 × 150 | 118-903 |
| 4 | 300 × 300 × 210 | 118-904 |
| 5 | 300 × 300 × 250 | 118-905 |
| 6 | 300 × 400 × 150 | 118-906 |
| 7 | 300 × 400 × 210 | 118-907 |
| 8 | 300 × 400 × 250 | 118-908 |
| 9 | 300 × 500 × 210 | 118-909 |
| 10 | 400 × 300 × 150 | 118-910 |
| 11 | 400 × 300 × 210 | 118-911 |
| 12 | 400 × 300 × 250 | 118-912 |
| 13 | 400 × 400 × 150 | 118-913 |
| 14 | 400 × 400 × 210 | 118-914 |
| 15 | 400 × 400 × 250 | 118-915 |
| 16 | 400 × 400 × 300 | 118-916 |
| 17 | 400 × 500 × 210 | 118-917 |
| 18 | 400 × 500 × 250 | 118-918 |
| 19 | 400 × 500 × 300 | 118-919 |
| 20 | 400 × 600 × 210 | 118-920 |
| 21 | 400 × 600 × 250 | 118-921 |
| 22 | 400 × 600 × 300 | 118-922 |
| 23 | 400 × 800 × 210 | 118-923 |
| 24 | 400 × 800 × 250 | 118-924 |
| 25 | 400 × 800 × 300 | 118-925 |
| 26 | 400 × 1000 × 250 | 118-926 |
| 27 | 400 × 1000 × 300 | 118-927 |
| 28 | 500 × 500 × 210 | 118-928 |
| 29 | 500 × 500 × 300 | 118-929 |
| 30 | 500 × 600 × 210 | 118-930 |
| 31 | 500 × 600 × 250 | 118-931 |
| 32 | 500 × 600 × 300 | 118-932 |
| 33 | 500 × 700 × 250 | 118-933 |
| 34 | 600 × 400 × 210 | 118-934 |
| 35 | 600 × 400 × 250 | 118-935 |
| 36 | 600 × 400 × 300 | 118-936 |
| 37 | 600 × 500 × 300 | 118-937 |
| 38 | 600 × 600 × 210 | 118-938 |
| 39 | 600 × 600 × 250 | 118-939 |
| 40 | 600 × 600 × 300 | 118-940 |
| 41 | 600 × 600 × 400 | 118-941 |
| 42 | 600 × 800 × 210 | 118-942 |
| 43 | 600 × 800 × 250 | 118-943 |
| 44 | 600 × 800 × 300 | 118-944 |
| 45 | 600 × 800 × 400 | 118-945 |
| 46 | 600 × 1000 × 250 | 118-946 |
| 47 | 600 × 1000 × 300 | 118-947 |
| 48 | 600 × 1000 × 400 | 118-948 |
| 49 | 600 × 1200 × 250 | 118-949 |
| 50 | 600 × 1200 × 300 | 118-950 |
| 51 | 600 × 1200 × 400 | 118-951 |
| 52 | 800 × 600 × 250 | 118-952 |
| 53 | 800 × 600 × 300 | 118-953 |
| 54 | 800 × 800 × 210 | 118-954 |
| 55 | 800 × 800 × 250 | 118-955 |
| 56 | 800 × 800 × 300 | 118-956 |
| 57 | 800 × 800 × 400 | 118-957 |
| 58 | 800 × 1000 × 250 | 118-958 |
| 59 | 800 × 1000 × 300 | 118-959 |
| 60 | 800 × 1000 × 400 | 118-960 |
| 61 | 800 × 1200 × 250 | 118-961 |
| 62 | 800 × 1200 × 300 | 118-962 |
| 63 | 800 × 1200 × 400 | 118-963 |
