SKINTOP® INOX SC
SKINTOP® INOX EMC

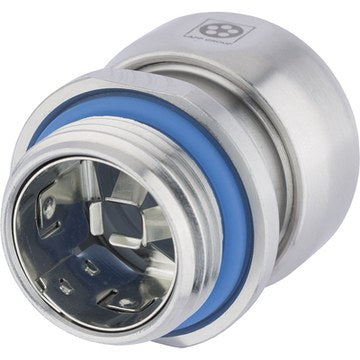

SKINTOP® INOX EMC is a corrosion-resistant stainless steel cable gland featuring smooth surfaces and a compact design, making it suitable for seawater environments. This stainless steel version offers optimal EMC protection.
Benefits
- Smooth surfaces – no sharp edges
- Compact design
- Large, variable clamping ranges
- Low screen contact resistance for optimal EMC protection
- Highly conductive, flexible EMC spring contacts for easy installation of screens with various diameters
Applications
- Ensuring electromagnetic compatibility when grounding braided copper shields or copper tape windings
- Pharmaceutical industry
- Food industry (non-product zones, splash zones)
- Waterfront and marine applications
- Bottling plants and breweries
Standards and Approvals
- DIN EN ISO 14159 – Machine safety, hygienic requirements for machine construction
- DIN EN 1672-2 – Guidelines for machine design
- ECOLAB® – Industrial standard for cleaning and disinfection of production lines
Product Design
- Metric connection thread according to DIN EN 60423
- Basic technical information according to DIN IEC 62444
Note
For painted, anodized, or powder-coated enclosures, proper contact requires the use of SKINDICHT® SM-PE locknuts.
Compatible accessories: see SKINTOP® metric accessories.
Product Table
| No. | Designation product / size |
Range and chokes diameters ØF [mm] |
Length thread [mm] |
Size and key SW [mm] |
Length and total C [mm] |
Catalogue No |
|---|---|---|---|---|---|---|
| 1 | M 12 x 1,5 | 4 - 7 | 6,5 | 16 | 29.3 | 53806720 |
| 2 | M 16 x 1,5 | 6 - 10 | 7 | 20 | 32.4 | 53806722 |
| 3 | M 20 x 1,5 | 7 - 13 | 8 | 24 | 32.4 | 53806724 |
| 4 | M 25 x 1,5 | 9 - 17 | 8 | 24 | 39.2 | 53806726 |
| 5 | M 32 x 1,5 | 11 - 21 | 9 | 36 | 44.6 | 53806728 |
