| Type | Corrosion Class | Material / Additional description | Coating |
|---|---|---|---|
| RSC | C2 | Steel sheet | RAL 7035 |
| SZC | C3 | Galvanized sheet | RAL 7035 |
| SZC-MG | C4 | Magnelis® sheet | RAL 7035 |

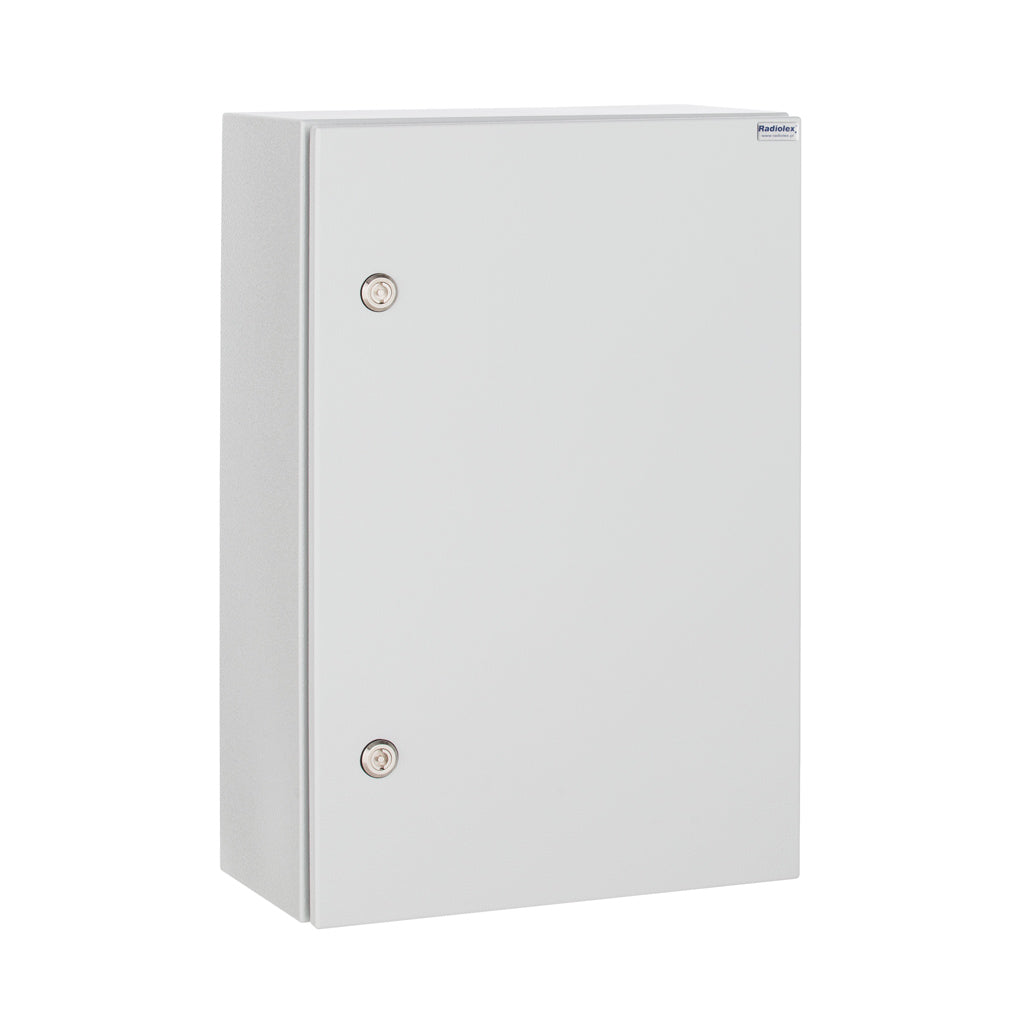

RSC Indoor 19-Inch Rack Cabinet — IP66 Monoblock Steel Enclosure
Indoor IP66-rated 19-inch rack cabinet with a fully welded monoblock steel construction. Designed for data, telecom and industrial installations, it provides high structural strength, secure equipment mounting and reliable long-term performance.
The RSC Series includes compact wall-mounted or free-standing 19-inch rack cabinets engineered for demanding indoor environments. Manufactured in Europe by Radiolex, each enclosure features a rigid monoblock steel body, ensuring exceptional durability and high ingress protection.
With IP66 sealing, a 105° hinged door system and a single perforated rack frame, the RSC cabinet is ideal for electronic and communication equipment in areas requiring dust, moisture and mechanical protection.
High-Strength Monoblock Construction
The enclosure body is manufactured as a single welded structure, ensuring maximum rigidity and precise geometry. This makes the RSC Series suitable for equipment requiring stable mounting conditions, such as patch panels, network switches, industrial communication modules, automation devices and compact IT or telecom hardware.
19-Inch Adjustable Rack Frame

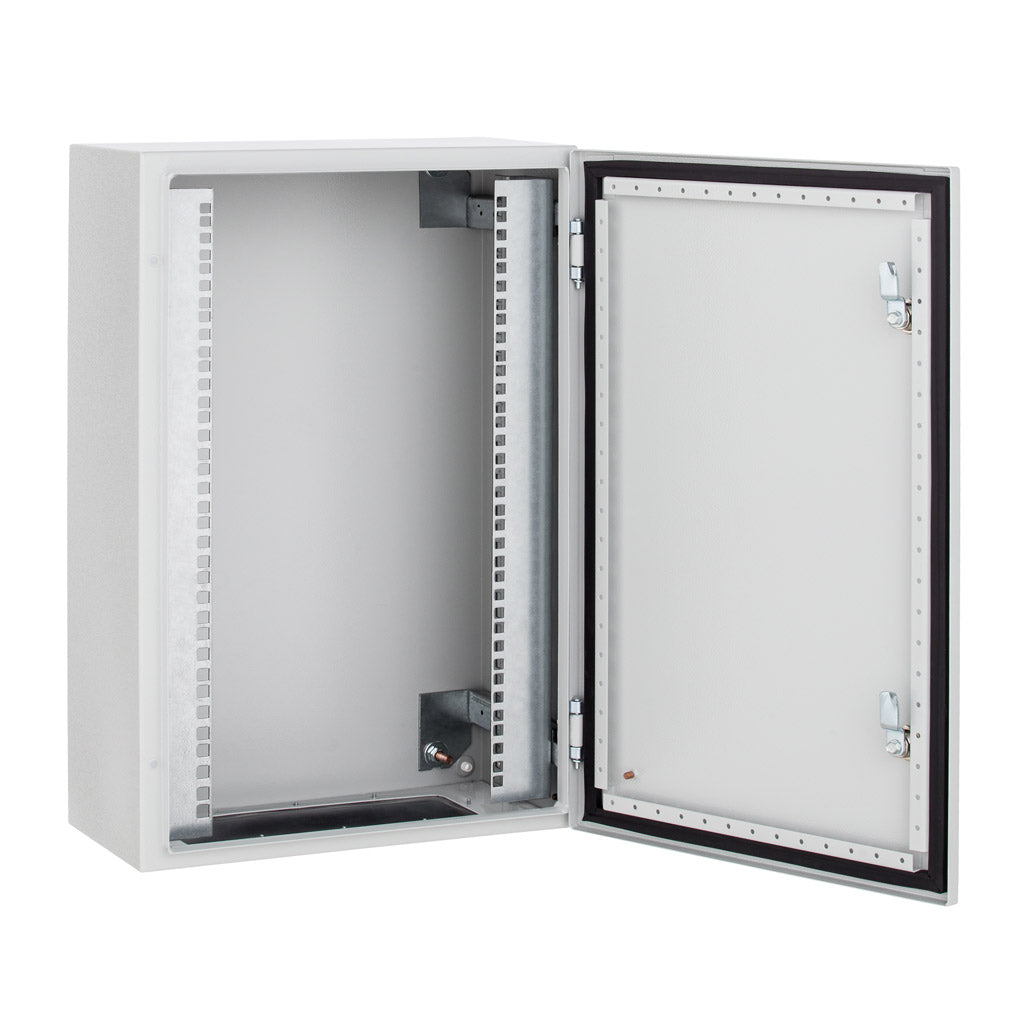

Each unit includes a perforated 19-inch rack frame made from 2 mm galvanised steel. The frame is depth-adjustable, allowing accurate positioning of mounted equipment regardless of the enclosure’s size.
IP66 Environmental Protection
The RSC enclosure offers strong protection against dust, powerful water jets and mechanical impact (IK10). Operating temperature range: –40°C to +80°C, ensuring reliable performance in harsh indoor environments.
Cable Management & Grounding
A cable gland plate is integrated into the base of the enclosure, with dimensions depending on cabinet width. Both the door and the enclosure body include threaded grounding studs for compliant and safe electrical installation.
Customisation Options
- Thermal insulation
- Extended operational temperature range (–50°C to +120°C)
- Non-standard enclosure dimensions
- Cut-outs in the door, body or mounting plate
- Powder coating in any RAL colour
Applications
- Data and network distribution points
- Indoor telecom nodes
- Automation and control systems
- Industrial communication equipment
- Small server and IT equipment installations
Engineering Summary
The RSC Indoor 19-Inch Rack Cabinet combines European manufacturing, robust welded steel construction and IP66 ingress protection — delivering a reliable solution for demanding data, telecom and industrial environments.
RSC / SZK‑C / SZC‑MG – Dimensions and Catalogue Numbers
| Lp. | Dimensions (W x H x D,mm) | Catalogue No. RSC | Catalogue No. SZK‑C | Catalogue No. SZC‑MG |
|---|---|---|---|---|
| 1 | 5U – 600 × 300 × 400 | 190-001 | 191-001 | 191-101 |
| 2 | 7U – 600 × 400 × 400 | 190-002 | 191-002 | 191-102 |
| 3 | 9U – 600 × 500 × 400 | 190-003 | 191-003 | 191-103 |
| 4 | 12U – 600 × 600 × 400 | 190-004 | 191-004 | 191-104 |
| 5 | 16U – 600 × 800 × 400 | 190-005 | 191-005 | 191-105 |
| 6 | 21U – 600 × 1000 × 400 | 190-006 | 191-006 | 191-106 |
| 7 | 25U – 600 × 1200 × 400 | 190-007 | 191-007 | 191-107 |
| 8 | 5U – 600 × 300 × 500 | 190-008 | 191-008 | 191-108 |
| 9 | 7U – 600 × 400 × 500 | 190-009 | 191-009 | 191-109 |
| 10 | 9U – 600 × 500 × 500 | 190-010 | 191-010 | 191-110 |
| 11 | 12U – 600 × 600 × 500 | 190-011 | 191-011 | 191-111 |
| 12 | 16U – 600 × 800 × 500 | 190-012 | 191-012 | 191-112 |
| 13 | 21U – 600 × 1000 × 500 | 190-013 | 191-013 | 191-113 |
| 14 | 25U – 600 × 1200 × 500 | 190-014 | 191-014 | 191-114 |
| 15 | 5U – 600 × 300 × 600 | 190-015 | 191-015 | 191-115 |
| 16 | 7U – 600 × 400 × 600 | 190-016 | 191-016 | 191-116 |
| 17 | 9U – 600 × 500 × 600 | 190-017 | 191-017 | 191-117 |
| 18 | 12U – 600 × 600 × 600 | 190-018 | 191-018 | 191-118 |
| 19 | 16U – 600 × 800 × 600 | 190-019 | 191-019 | 191-119 |
| 20 | 21U – 600 × 1000 × 600 | 190-020 | 191-020 | 191-120 |
| 21 | 25U – 600 × 1200 × 600 | 190-021 | 191-021 | 191-121 |
| 22 | 5U – 800 × 300 × 400 | 190-022 | 191-022 | 191-122 |
| 23 | 7U – 800 × 400 × 400 | 190-023 | 191-023 | 191-123 |
| 24 | 9U – 800 × 500 × 400 | 190-024 | 191-024 | 191-124 |
| 25 | 12U – 800 × 600 × 400 | 190-025 | 191-025 | 191-125 |
| 26 | 16U – 800 × 800 × 400 | 190-026 | 191-026 | 191-126 |
| 27 | 21U – 800 × 1000 × 400 | 190-027 | 191-027 | 191-127 |
| 28 | 25U – 800 × 1200 × 400 | 190-028 | 191-028 | 191-128 |
| 29 | 5U – 800 × 300 × 500 | 190-029 | 191-029 | 191-129 |
| 30 | 7U – 800 × 400 × 500 | 190-030 | 191-030 | 191-130 |
| 31 | 9U – 800 × 500 × 500 | 190-031 | 191-031 | 191-131 |
| 32 | 12U – 800 × 600 × 500 | 190-032 | 191-032 | 191-132 |
| 33 | 16U – 800 × 800 × 500 | 190-033 | 191-033 | 191-133 |
| 34 | 21U – 800 × 1000 × 500 | 190-034 | 191-034 | 191-134 |
| 35 | 25U – 800 × 1200 × 500 | 190-035 | 191-035 | 191-135 |
| 36 | 5U – 800 × 300 × 600 | 190-036 | 191-036 | 191-136 |
| 37 | 7U – 800 × 400 × 600 | 190-037 | 191-037 | 191-137 |
| 38 | 9U – 800 × 500 × 600 | 190-038 | 191-038 | 191-138 |
| 39 | 12U – 800 × 600 × 600 | 190-039 | 191-039 | 191-139 |
| 40 | 16U – 800 × 800 × 600 | 190-040 | 191-040 | 191-140 |
| 41 | 21U – 800 × 1000 × 600 | 190-041 | 191-041 | 191-141 |
| 42 | 25U – 800 × 1200 × 600 | 190-042 | 191-042 | 191-142 |
