| Type | Corrosion Class | Material / Additional description | Coating |
|---|---|---|---|
| RSA-HD-OH | C4** | Stainless steel 1.4301 (AISI 304) | GROUND |
| RSA-HD-KO | CX** | Acid-resistant steel 1.4404 (AISI 316L) | GROUND |

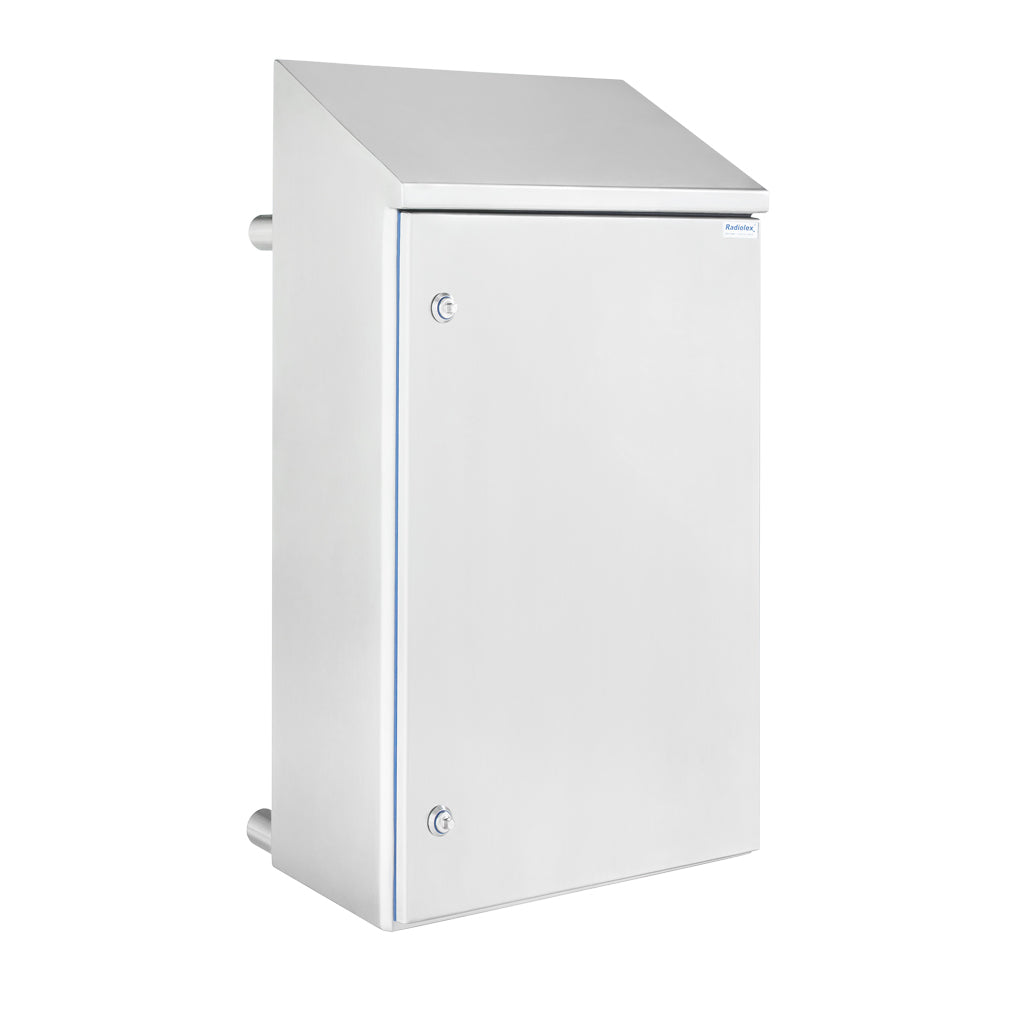

RSA-HD Wall-Mounted Enclosure
RSA-HD is a compact wall-mounted enclosure with high ingress protection, designed to prevent contamination and ensure hygiene. Its sloped surfaces minimize dirt accumulation, and a special gasket seals the connection between body and cover, eliminating gaps for debris. These enclosures are ideal for food industry production lines and comply with European regulations and EHEDG guidelines for food-contact equipment.
General Information
- Ingress Protection (IP): 69K
- Impact Resistance (IK): 10
- Operating Temperature Range: –20°C to +80°C
Basic Features
- Body: Monobloc, fully welded for tightness

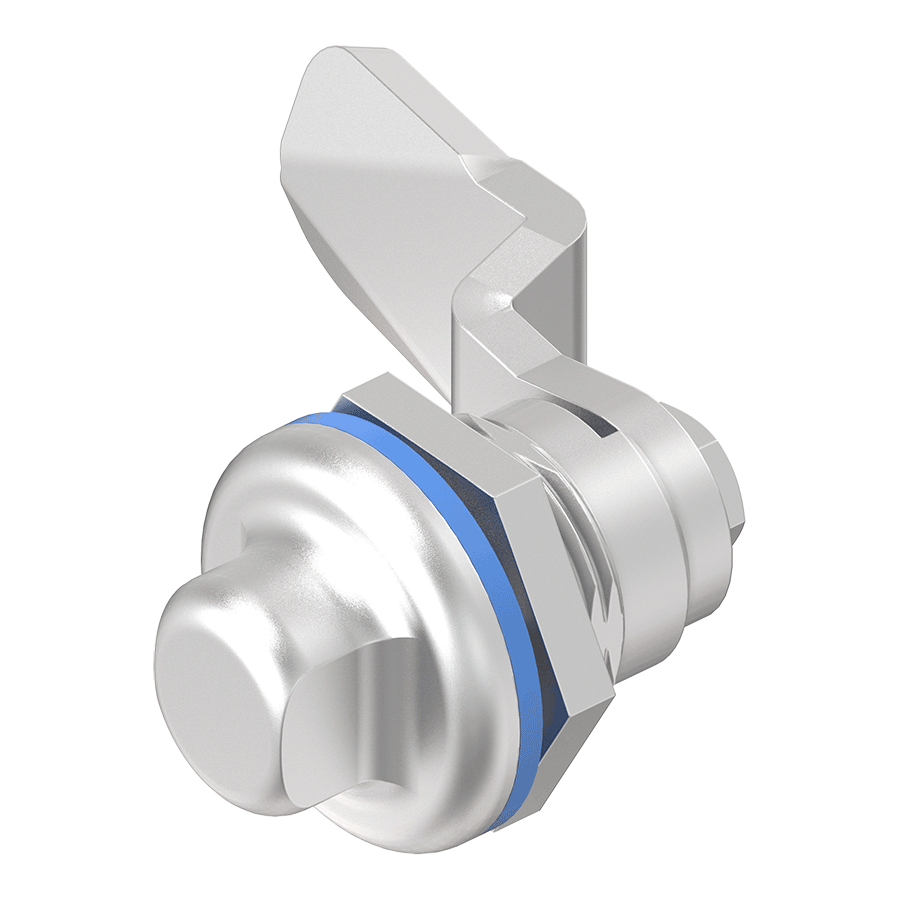

- Closure: Hinged doors with 105° opening; up to 500 mm – one D5-HD lock, taller – two or three locks
- Mounting Plate: 2 mm galvanized sheet, all versions
- Earthing: Threaded grounding studs in doors and body
- Other: Doors with internal perforated angle reinforcement for mounting components
Additional Options
- Extended temperature range: –50°C to +120°C
- Custom dimensions
- Perforations in doors, body, or mounting plate
- Mounting sleeves for installation on structures or walls
Documents
Radiolex products declaration of conformity
RSA-HD Enclosure Dimensions and Catalogue Numbers
| No. | Dimensions (W × H × D, mm) | Catalogue No. RSA-HD-OH | Catalogue No. RSA-HD-KO |
|---|---|---|---|
| 1 | 200 x 300 x 150 | - | - |
| 2 | 300 x 200 x 150 | - | - |
| 3 | 300 x 300 x 150 | 100-403 | 100-503 |
| 4 | 300 x 300 x 210 | 100-404 | 100-504 |
| 5 | 300 x 300 x 250 | 100-405 | 100-505 |
| 6 | 300 x 400 x 150 | 100-406 | 100-506 |
| 7 | 300 x 400 x 210 | 100-407 | 100-507 |
| 8 | 300 x 400 x 250 | 100-408 | 100-508 |
| 9 | 300 x 500 x 210 | 100-409 | 100-509 |
| 10 | 400 x 300 x 150 | 100-410 | 100-510 |
| 11 | 400 x 300 x 210 | 100-411 | 100-511 |
| 12 | 400 x 300 x 250 | 100-412 | 100-512 |
| 13 | 400 x 400 x 150 | 100-413 | 100-513 |
| 14 | 400 x 400 x 210 | 100-414 | 100-514 |
| 15 | 400 x 400 x 250 | 100-415 | 100-515 |
| 16 | 400 x 400 x 300 | 100-416 | 100-516 |
| 17 | 400 x 500 x 210 | 100-417 | 100-517 |
| 18 | 400 x 500 x 250 | 100-418 | 100-518 |
| 19 | 400 x 500 x 300 | 100-419 | 100-519 |
| 20 | 400 x 600 x 210 | 100-420 | 100-520 |
| 21 | 400 x 600 x 250 | 100-421 | 100-521 |
| 22 | 400 x 600 x 300 | 100-422 | 100-522 |
| 23 | 400 x 800 x 210 | 100-423 | 100-523 |
| 24 | 400 x 800 x 250 | 100-424 | 100-524 |
| 25 | 400 x 800 x 300 | 100-425 | 100-525 |
| 26 | 400 x 1000 x 250 | 100-426 | 100-526 |
| 27 | 400 x 1000 x 300 | 100-427 | 100-527 |
| 28 | 500 x 500 x 210 | 100-428 | 100-528 |
| 29 | 500 x 500 x 300 | 100-429 | 100-529 |
| 30 | 500 x 600 x 210 | 100-430 | 100-530 |
| 31 | 500 x 600 x 250 | 100-431 | 100-531 |
| 32 | 500 x 600 x 300 | 100-432 | 100-532 |
| 33 | 500 x 700 x 250 | 100-433 | 100-533 |
| 34 | 600 x 400 x 210 | 100-434 | 100-534 |
| 35 | 600 x 400 x 250 | 100-435 | 100-535 |
| 36 | 600 x 400 x 300 | 100-436 | 100-536 |
| 37 | 600 x 500 x 300 | 100-437 | 100-537 |
| 38 | 600 x 600 x 210 | 100-438 | 100-538 |
| 39 | 600 x 600 x 250 | 100-439 | 100-539 |
| 40 | 600 x 600 x 300 | 100-440 | 100-540 |
| 41 | 600 x 600 x 400 | 100-441 | 100-541 |
| 42 | 600 x 800 x 210 | 100-442 | 100-542 |
| 43 | 600 x 800 x 250 | 100-443 | 100-543 |
| 44 | 600 x 800 x 300 | 100-444 | 100-544 |
| 45 | 600 x 800 x 400 | 100-445 | 100-545 |
| 46 | 600 x 1000 x 250 | 100-446 | 100-546 |
| 47 | 600 x 1000 x 300 | 100-447 | 100-547 |
| 48 | 600 x 1000 x 400 | 100-448 | 100-548 |
| 49 | 600 x 1200 x 250 | 100-449 | 100-549 |
| 50 | 600 x 1200 x 300 | 100-450 | 100-550 |
| 51 | 600 x 1200 x 400 | 100-451 | 100-551 |
| 52 | 800 x 600 x 250 | 100-452 | 100-552 |
| 53 | 800 x 600 x 300 | 100-453 | 100-553 |
| 54 | 800 x 800 x 210 | 100-454 | 100-554 |
| 55 | 800 x 800 x 250 | 100-455 | 100-555 |
| 56 | 800 x 800 x 300 | 100-456 | 100-556 |
| 57 | 800 x 800 x 400 | 100-457 | 100-557 |
| 58 | 800 x 1000 x 250 | 100-458 | 100-558 |
| 59 | 800 x 1000 x 300 | 100-459 | 100-559 |
| 60 | 800 x 1000 x 400 | 100-460 | 100-560 |
| 61 | 800 x 1200 x 250 | 100-461 | 100-561 |
| 62 | 800 x 1200 x 300 | 100-462 | 100-562 |
| 63 | 800 x 1200 x 400 | 100-463 | 100-563 |
