RSA-ATEX IP66 Stainless Steel Enclosure – ATEX & IECEx Certified for Hazardous Areas

Name: RSA-ATEX IP66 Stainless Steel Enclosure – ATEX & IECEx Certified for Hazardous Areas
Brand: Gridhaus Systems
Availability: InStock

Send Inquiry View Dimensions

Product Table

Type	Corrosivity category	Material / additional description	Coating
RSA-ATEX-OH	C4**	Stainless steel 1.4301 (AISI 304)	Brushed
RSA-ATEX-KO	CX**	Acid-resistant steel 1.4404 (AISI 316L)	Brushed

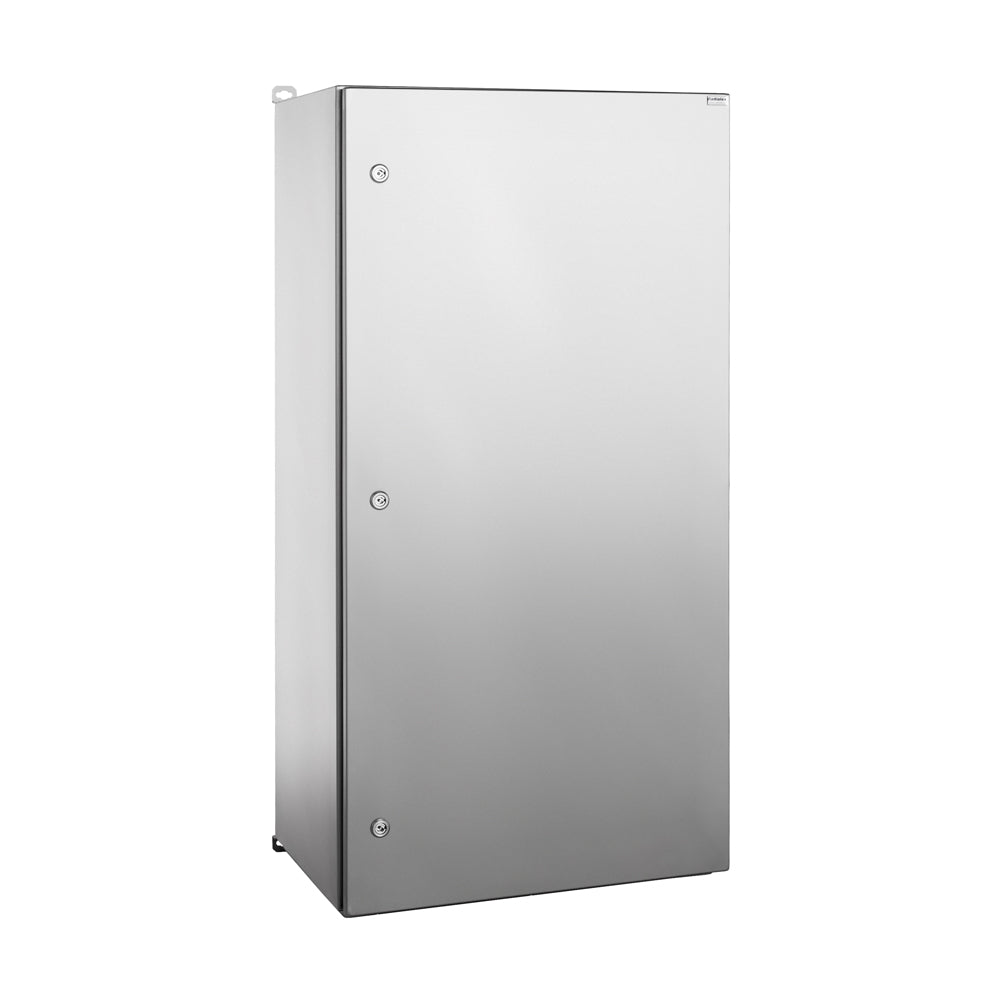

RSA-ATEX Wall-Mounted Enclosure

RSA-ATEX is a compact wall-mounted enclosure offering versatile configuration and reliable operation in explosion hazard zones. The standard range includes 63 different sizes to suit various applications.

General Information

Ingress Protection: IP66
Impact Resistance: IK08
Operating Temperature: –20°C to +80°C
ATEX Identification: II 2G Ex eb II Gb, II 2D Ex tb IIIC Db
Compliance: PN-EN 60079:2013 (EN 60079-0:2012), PN-EN 60079-7:2016 (EN 60079-7:2007), PN-EN 60079-31:2014 (EN 60079-31:2014)
Certification: EC Type Testing Certificate No. OBAC 15 ATEX 0203U

Construction & Features

Body: Monobloc, fully welded for tightness
Closure: Hinged door with 105° opening angle; up to 400 mm height – one D5 lock, 500–800 mm – two locks, above 800 mm – three locks
Installation Plate: Galvanized steel, 2 mm thick, available in any version
Cable Entry: Cable gland in the base, size depends on enclosure width
Earthing: Threaded earthing pins in both door and body
Mounting: Supplied with removable wall brackets

Additional Options

Custom dimensions
Cut-outs in door, body, or installation plate
Painting in any RAL colour

Made to Order ONLY for Larger Quantities

This product is available to order in larger quantities. For bulk requirements, project orders, or bespoke quantity requests, please contact us directly so we can confirm availability, lead time, and pricing.

PDF Downloader Section

Documents

📄

CATALOGUE CARD

Download

📄

CERTIFICATE ATEX_WE

Download

📄

CERTIFICATE IECEx

Download

📄

CERTIFICATE ATEX_Q

Download

📄

IECEx QAR report

Download

Product Table

The following table presents enclosures equipped with a mounting plate.

No.	Dimensions (W × H × D, mm)	Catalogue No. RSA-ATEX-OH	Catalogue No. RSA-ATEX-KO
1	200 × 300 × 150	116-001	116-101
2	300 × 200 × 150	116-002	116-102
3	300 × 300 × 150	116-003	116-103
4	300 × 300 × 210	116-004	116-104
5	300 × 300 × 250	116-005	116-105
6	300 × 400 × 150	116-006	116-106
7	300 × 400 × 210	116-007	116-107
8	300 × 400 × 250	116-008	116-108
9	300 × 500 × 210	116-009	116-109
10	400 × 300 × 150	116-010	116-110
11	400 × 300 × 210	116-011	116-111
12	400 × 300 × 250	116-012	116-112
13	400 × 400 × 150	116-013	116-113
14	400 × 400 × 210	116-014	116-114
15	400 × 400 × 250	116-015	116-115
16	400 × 400 × 300	116-016	116-116
17	400 × 500 × 210	116-017	116-117
18	400 × 500 × 250	116-018	116-118
19	400 × 500 × 300	116-019	116-119
20	400 × 600 × 210	116-020	116-120
21	400 × 600 × 250	116-021	116-121
22	400 × 600 × 300	116-022	116-122
23	400 × 800 × 210	116-023	116-123
24	400 × 800 × 250	116-024	116-124
25	400 × 800 × 300	116-025	116-125
26	400 × 1000 × 250	116-026	116-126
27	400 × 1000 × 300	116-027	116-127
28	500 × 500 × 210	116-028	116-128
29	500 × 500 × 300	116-029	116-129
30	500 × 600 × 210	116-030	116-130
31	500 × 600 × 250	116-031	116-131
32	500 × 600 × 300	116-032	116-132
33	500 × 700 × 250	116-033	116-133
34	600 × 400 × 210	116-034	116-134
35	600 × 400 × 250	116-035	116-135
36	600 × 400 × 300	116-036	116-136
37	600 × 500 × 300	116-037	116-137
38	600 × 600 × 210	116-038	116-138
39	600 × 600 × 250	116-039	116-139
40	600 × 600 × 300	116-040	116-140
41	600 × 600 × 400	116-041	116-141
42	600 × 800 × 210	116-042	116-142
43	600 × 800 × 250	116-043	116-143
44	600 × 800 × 300	116-044	116-144
45	600 × 800 × 400	116-045	116-145
46	600 × 1000 × 250	116-046	116-146
47	600 × 1000 × 300	116-047	116-147
48	600 × 1000 × 400	116-048	116-148
49	600 × 1200 × 250	116-049	116-149
50	600 × 1200 × 300	116-050	116-150
51	600 × 1200 × 400	116-051	116-151
52	800 × 600 × 250	116-052	116-152
53	800 × 600 × 300	116-053	116-153
54	800 × 800 × 210	116-054	116-154
55	800 × 800 × 250	116-055	116-155
56	800 × 800 × 300	116-056	116-156
57	800 × 800 × 400	116-057	116-157
58	800 × 1000 × 250	116-058	116-158
59	800 × 1000 × 300	116-059	116-159
60	800 × 1000 × 400	116-060	116-160
61	800 × 1200 × 250	116-061	116-161
62	800 × 1200 × 300	116-062	116-162
63	800 × 1200 × 400	116-063	116-163
