| Type | Corrosion Class | Material / Additional description | Coating |
|---|---|---|---|
| OZ-HD-OH | C4** | Stainless steel 1.4301 (AISI 304) | GROUND |
| OZ-HD-KO | CX** | Acid-resistant steel 1.4404 (AISI 316L) | GROUND |
OZ-HD ENCLOSURE

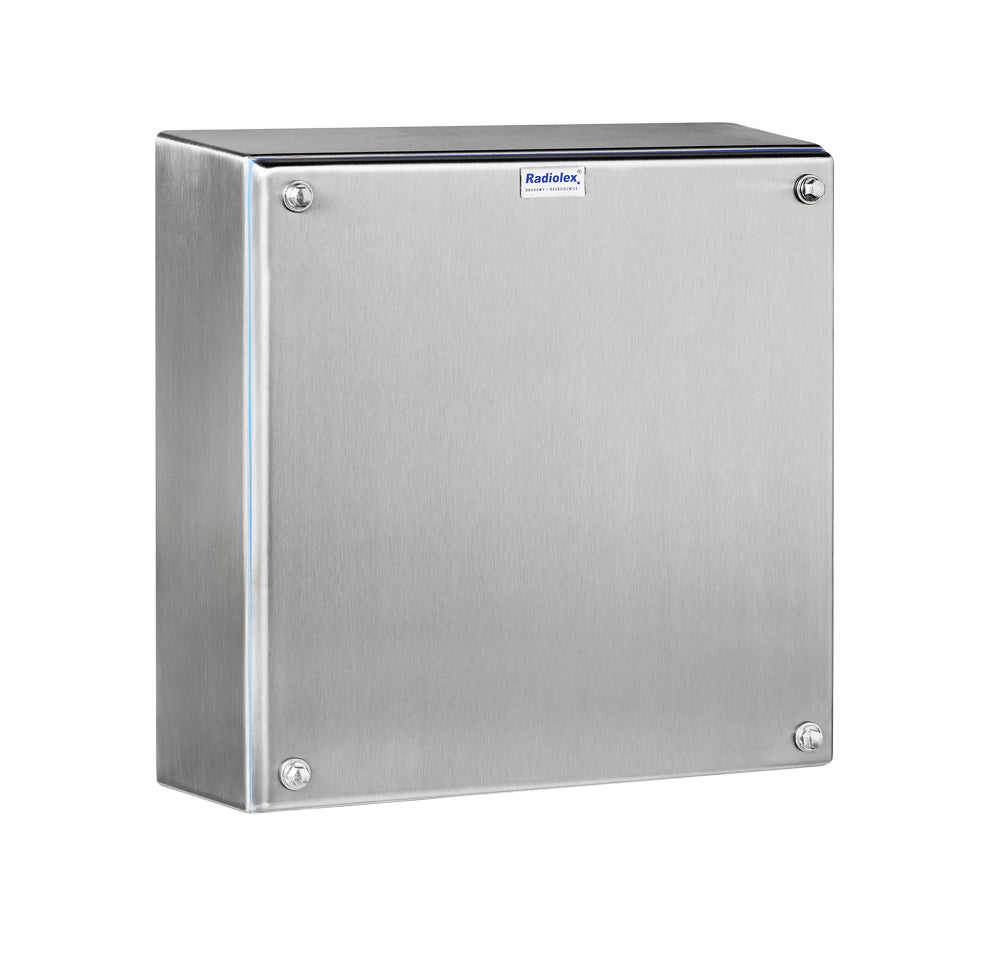

The OZ-HD is a compact, wall-mounted enclosure designed for superior protection against contamination. Its sloped surfaces minimize dirt buildup, while a specialized gasket between the body and cover eliminates gaps where impurities could collect. Engineered for maximum safety and hygiene, OZ-HD enclosures are ideal for food industry production lines and comply with all European regulations and EHEDG guidelines for food-contact equipment.
General Information
- Protection rating (IP): 69K
- Impact resistance (IK): 10
- Operating temperature: -20 to +80 °C
Basic Data

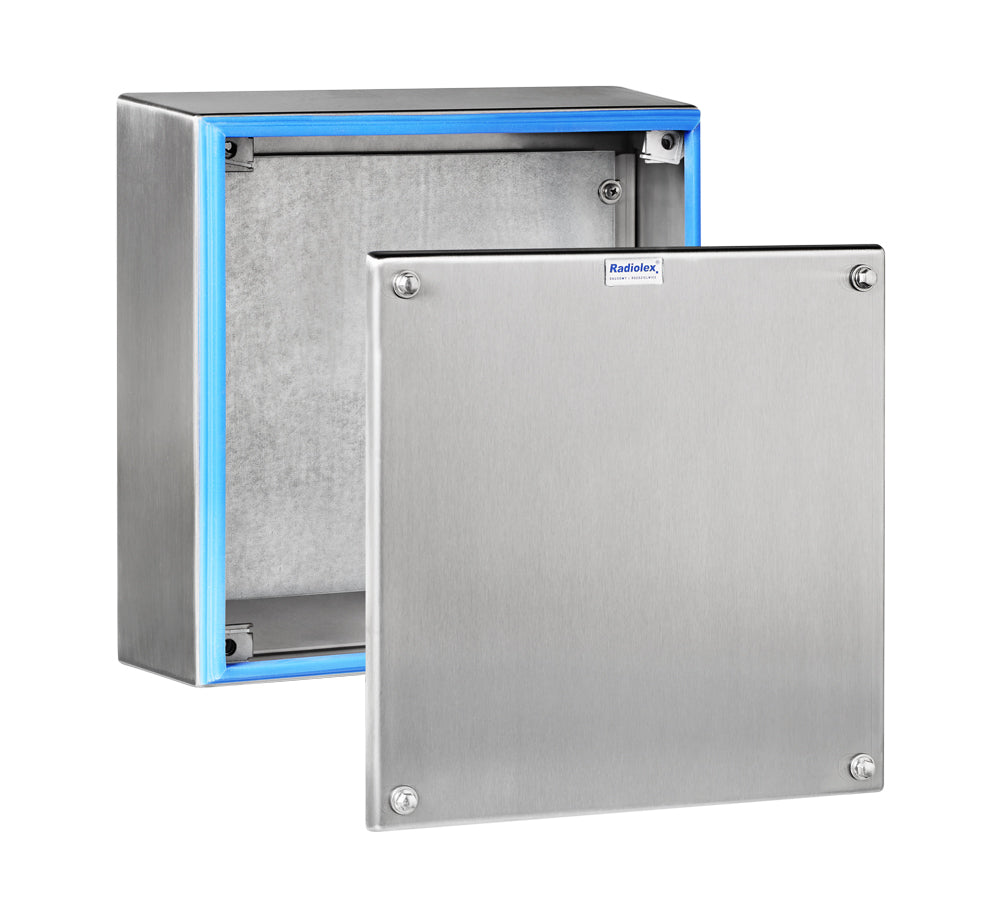

- Body: monoblock, fully welded construction
- Closure: cover secured with four screws
- Grounding: threaded grounding studs in both cover and body
- Interior: perforated brackets for TS-35 rail or mounting plate installation
Additional Options
- Extended temperature range: -50 to +120 °C
- Custom dimensions available
- Openings in door, body, or mounting plate upon request
Documents
Radiolex products declaration of conformity
The following table presents enclosures equipped with a mounting plate.
| No. | Dimensions (W × H × D, mm) | Catalogue No. OZ-HD-OH | Catalogue No. OZ-HD-KO |
|---|---|---|---|
| 1 | 150 × 150 × 80 | 171-101 | 172-101 |
| 2 | 200 × 150 × 80 | 171-102 | 172-102 |
| 3 | 200 × 200 × 80 | 171-103 | 172-103 |
| 4 | 200 × 250 × 80 | 171-104 | 172-104 |
| 5 | 250 × 250 × 80 | 171-105 | 172-105 |
| 6 | 250 × 300 × 80 | 171-106 | 172-106 |
| 7 | 300 × 300 × 80 | 171-107 | 172-107 |
| 8 | 400 × 300 × 80 | 171-108 | 172-108 |
| 9 | 150 × 150 × 100 | 171-109 | 172-109 |
| 10 | 200 × 150 × 100 | 171-110 | 172-110 |
| 11 | 200 × 200 × 100 | 171-111 | 172-111 |
| 12 | 200 × 250 × 100 | 171-112 | 172-112 |
| 13 | 250 × 250 × 100 | 171-113 | 172-113 |
| 14 | 250 × 300 × 100 | 171-114 | 172-114 |
| 15 | 300 × 300 × 100 | 171-115 | 172-115 |
| 16 | 400 × 300 × 100 | 171-116 | 172-116 |
| 17 | 150 × 150 × 120 | 171-117 | 172-117 |
| 18 | 200 × 150 × 120 | 171-118 | 172-118 |
| 19 | 200 × 200 × 120 | 171-119 | 172-119 |
| 20 | 200 × 250 × 120 | 171-120 | 172-120 |
| 21 | 250 × 250 × 120 | 171-121 | 172-121 |
| 22 | 250 × 300 × 120 | 171-122 | 172-122 |
| 23 | 300 × 300 × 120 | 171-123 | 172-123 |
| 24 | 300 × 300 × 120 | 171-124 | 172-124 |
