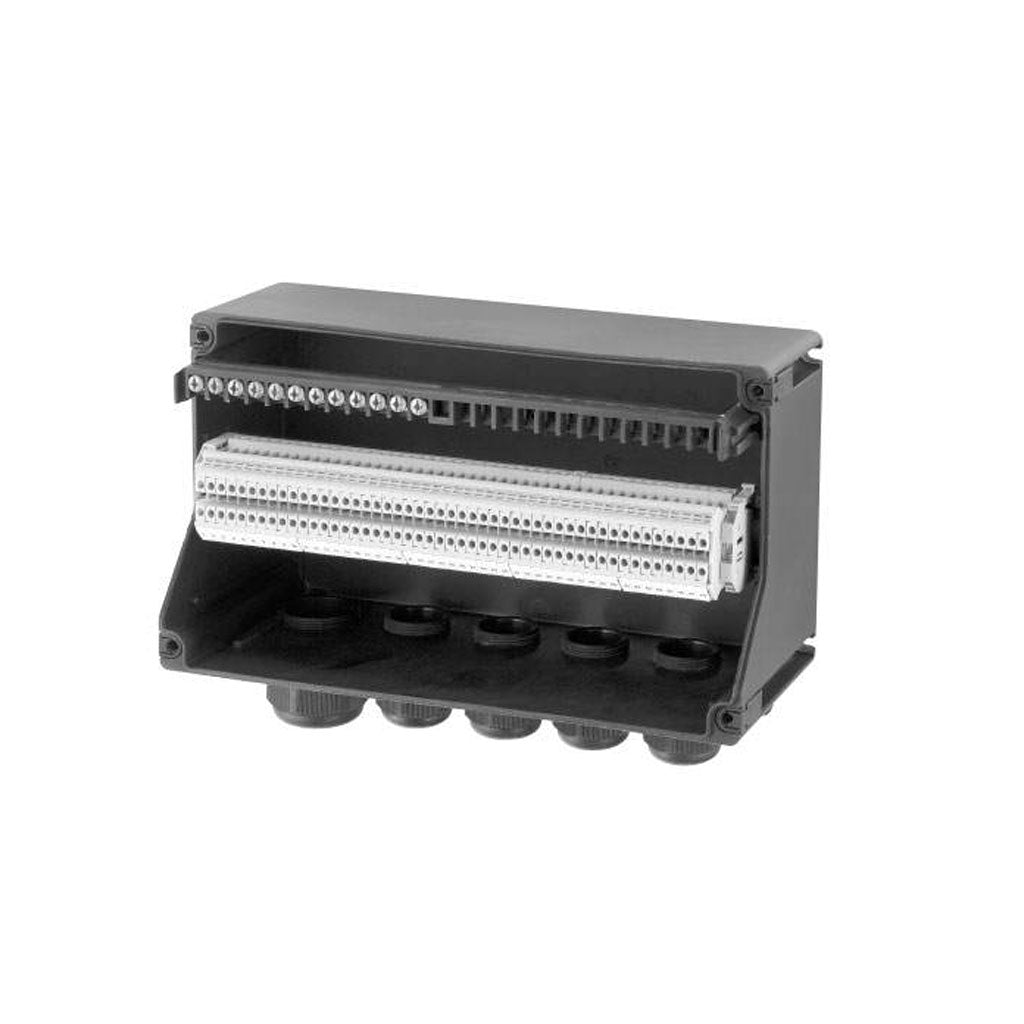

GHG – terminal boxes made of Ex plastic
£0.00 GBP
Ex-e / Ex-i Terminal Boxes
Durable Ex-e / Ex-i terminal boxes comply with strict standards, making them suitable for hazardous zones 1, 2, 21, and 22. Their high-quality plastic construction is lightweight, corrosion-resistant, and capable of withstanding high temperatures. These boxes are easy and quick to install on pipes, walls, or cable trays. A wide range of terminals allows flexible wiring and cable routing, with internal components tailored to individual requirements. All additional components are certified. Available in 10 sizes, they support cables up to 240 mm² and up to 148 terminals of 2.5 mm².
Basic Data
- System mounting
- Protection degree: IP66
- Easily accessible cable terminals
- Snap-on plates
- Rails for quick installation
- Optional internal shield for electromagnetic compatibility
- International certifications
Documents
CE declaration of conformity
Ex Terminal Boxes – Dimensions and Catalogue Numbers
| No. | Dimensions (W × H × D, mm) |
Rail length | Catalogue no. |
|---|---|---|---|
| 1 | 100 × 81 × 61 | 40 mm | 5.GHG 791 01 |
| 2 | 113 × 117 × 73 | 95 mm | 5.GHG 791 02 |
| 3 | 120 × 140 × 95 | 107 mm | 5.GHG 731 11 |
| 4 | 182 × 140 × 95 | 169 mm | 5.GHG 731 12 |
| 5 | 165 × 165 × 131 | 140 mm | 5.GHG 721 00 |
| 6 | 285 × 165 × 143 | 262 mm | 5.GHG 721 10 |
| 7 | 271 × 134 × 136 | 230 mm | 5.GHG 744 01 |
| 8 | 271 × 271 × 136 | 2 × 235 mm | 5.GHG 745 02 |
| 9 | 544 × 271 × 136 | 2 × 510 mm | 5.GHG 746 03 |
| 10 | 817 × 271 × 136 | 2 × 795 mm | 5.GHG 749 04 |
