| Type | Corrosion Class | Material / Additional description | Coating |
|---|---|---|---|
| DSZ | C3* | Aluminum Sheet | RAL7035 |
DSZ Outdoor Telecom & Data Access Cabinet — Double-Wall Aluminium, IP55
Outdoor IP55-rated telecom and data access cabinet with double-wall aluminium construction. Designed for telecom, broadband and industrial electronic systems requiring strong environmental and mechanical protection.
The DSZ Series is a free-standing outdoor cabinet developed for telecom, broadband and data-access installations where equipment must be protected from weather exposure and unauthorised access. Manufactured in Europe by Radiolex, the DSZ enclosure combines a double-wall aluminium body with an aluminium profile frame to deliver high thermal stability, mechanical strength and corrosion resistance.
Typical uses include telecom infrastructure, roadside broadband distribution, outdoor IT nodes and industrial communication systems.
Construction & Materials

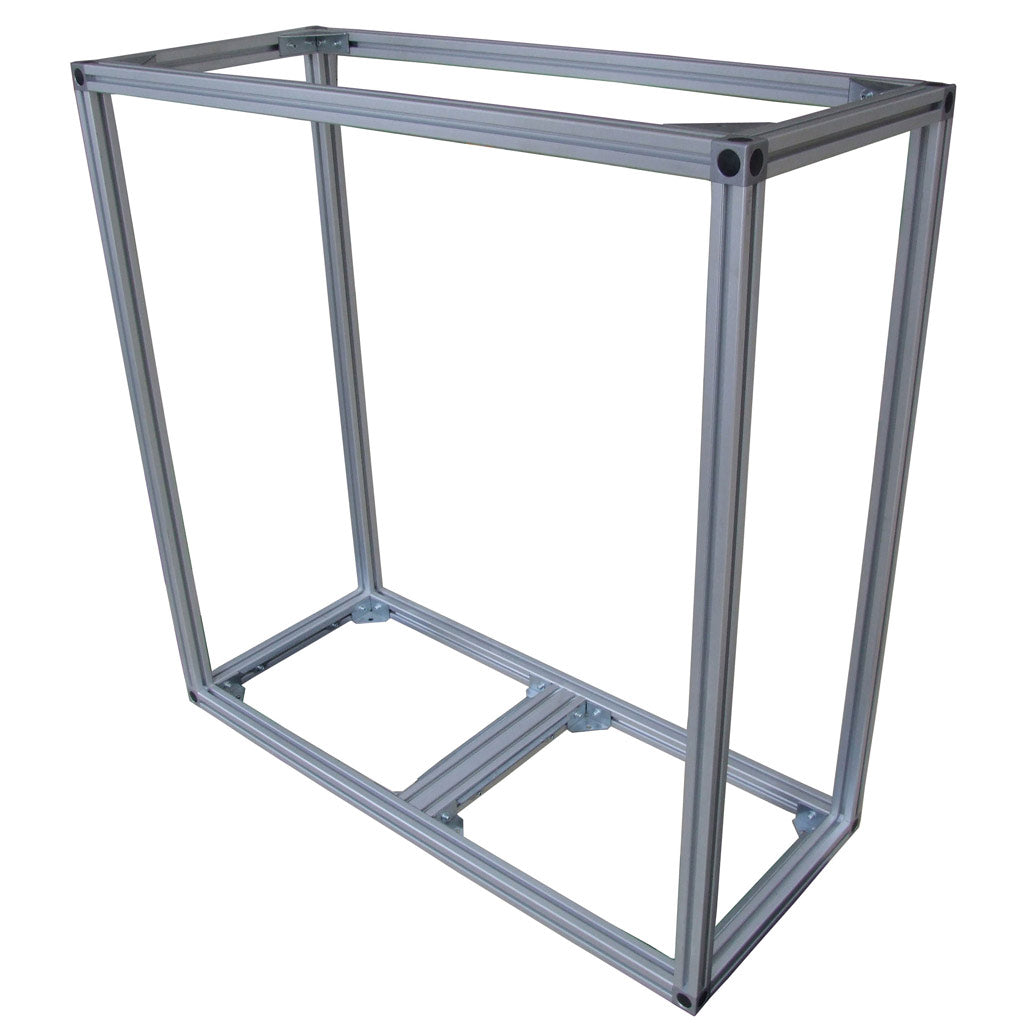

The DSZ enclosure is built on a self-supporting aluminium profile frame assembled from high-rigidity system profiles. The frame incorporates functional profile channels rated to 12,000 N tensile resistance, allowing flexible mounting of internal components and modular sections.

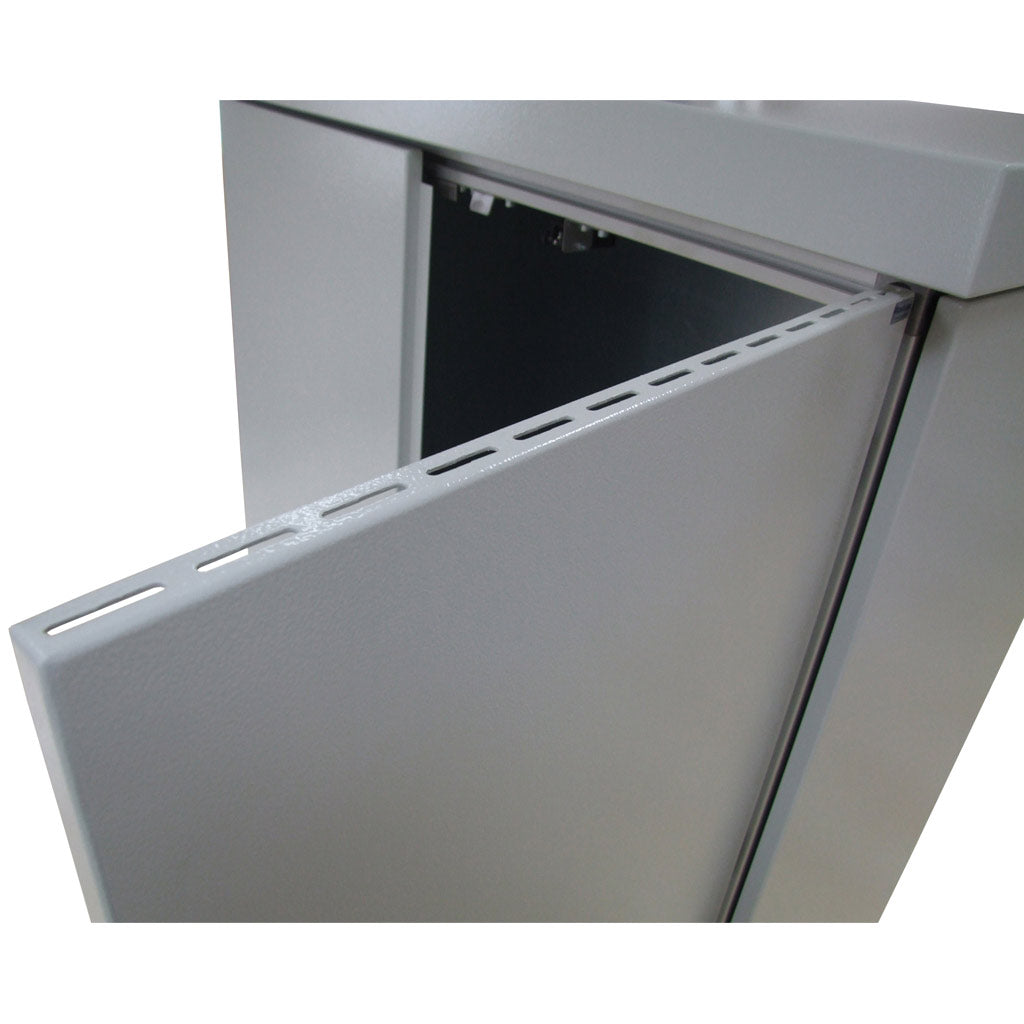

External wall panels, roof and door are manufactured from powder-coated double-wall aluminium sheets finished in RAL7035. The double-wall design improves mechanical resistance and supports better thermal performance in outdoor conditions. A 2 mm galvanised steel base provides additional stability and corrosion protection.
Protection & Environmental Performance
The DSZ Series provides IP55 ingress protection and IK10 impact resistance. It is designed for reliable operation in exposed outdoor locations such as roadside environments, industrial sites and urban infrastructure.

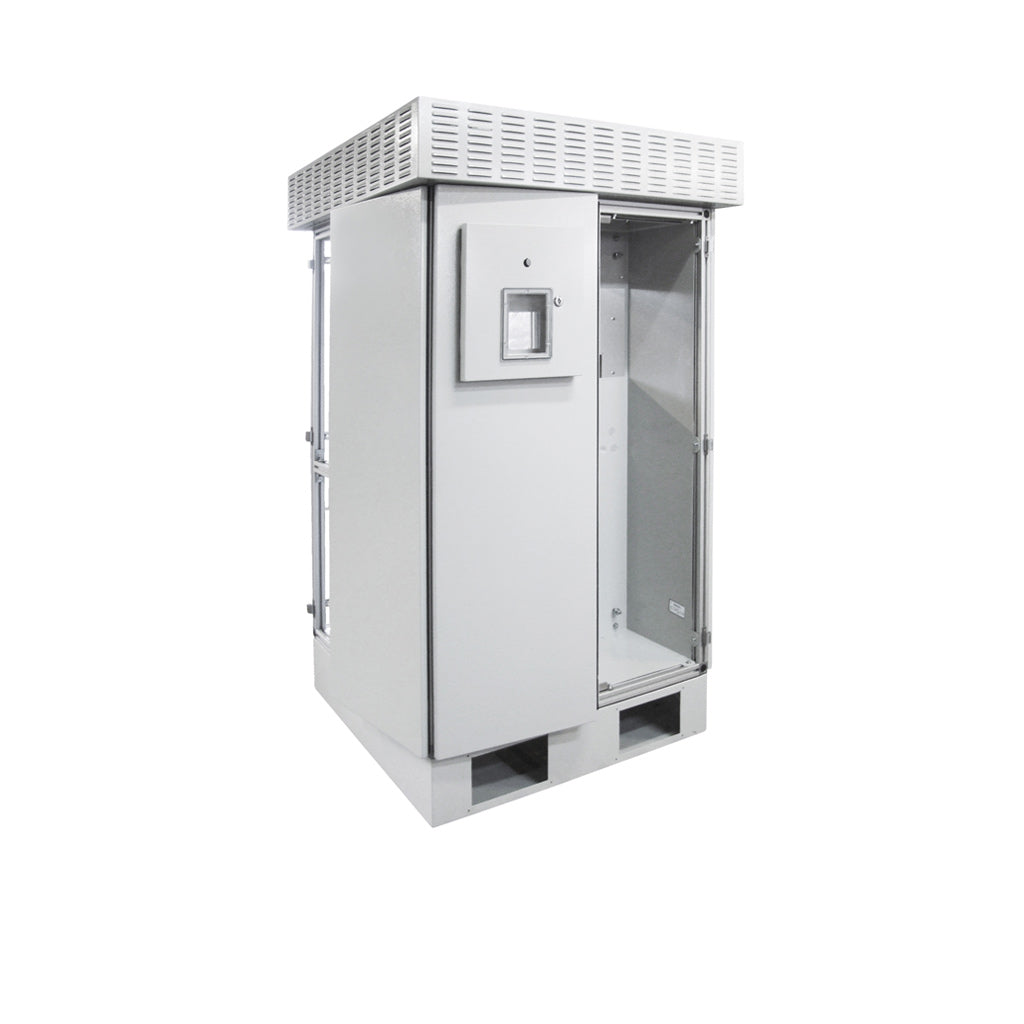

Operating temperature range: –40°C to +80°C. The double-wall construction supports natural airflow and a chimney effect, reducing solar heating and condensation and improving thermal stability without the need for active cooling in many applications.
Cable Entry & Grounding
A bottom-mounted cable entry plate is included, with dimensions dependent on the enclosure width. Threaded grounding studs are provided in both the cabinet body and the door to ensure proper earthing of installed equipment.
Security & Access

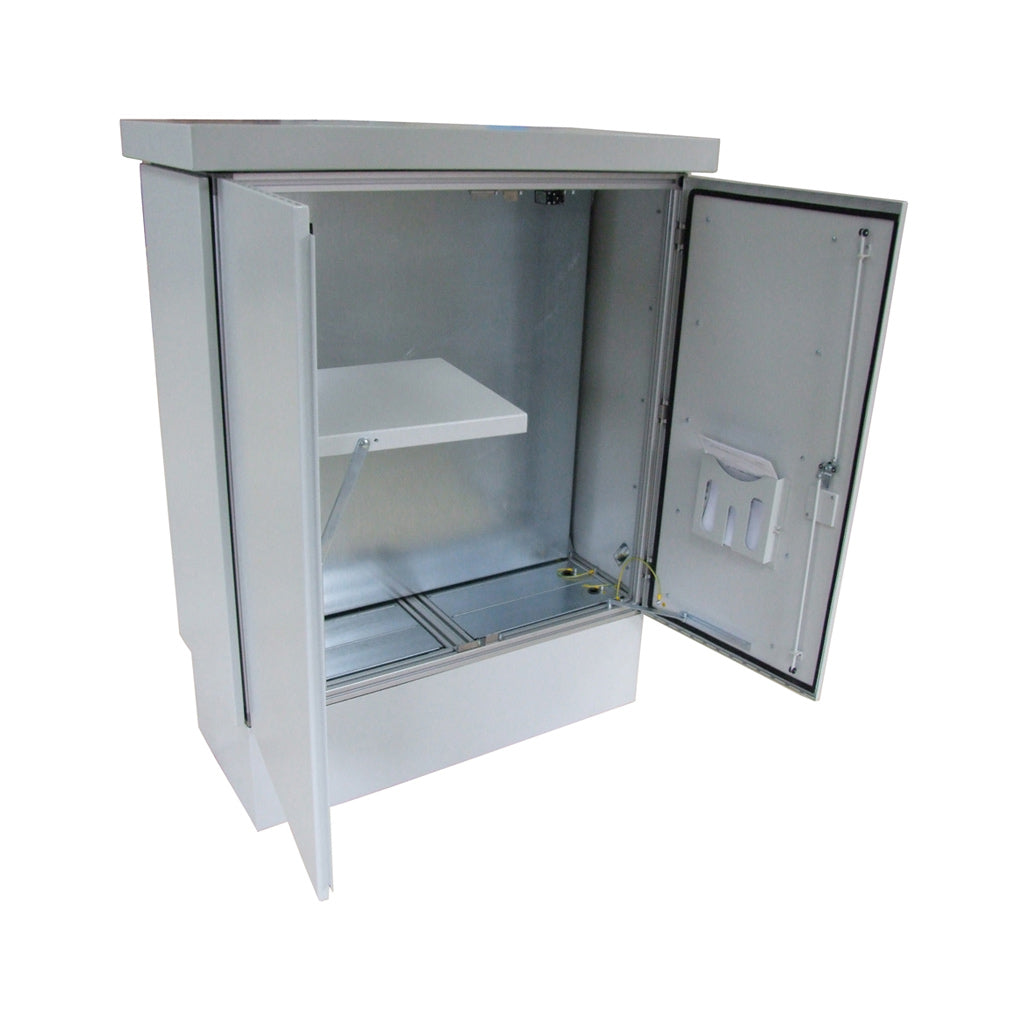

The main door is mounted on robust hinges with a 105° opening angle and equipped with a handle-style lock. Optional keyed inserts are available to support secure access control. The double-wall aluminium panels increase resistance to vandalism and unauthorised entry.
Internal Flexibility

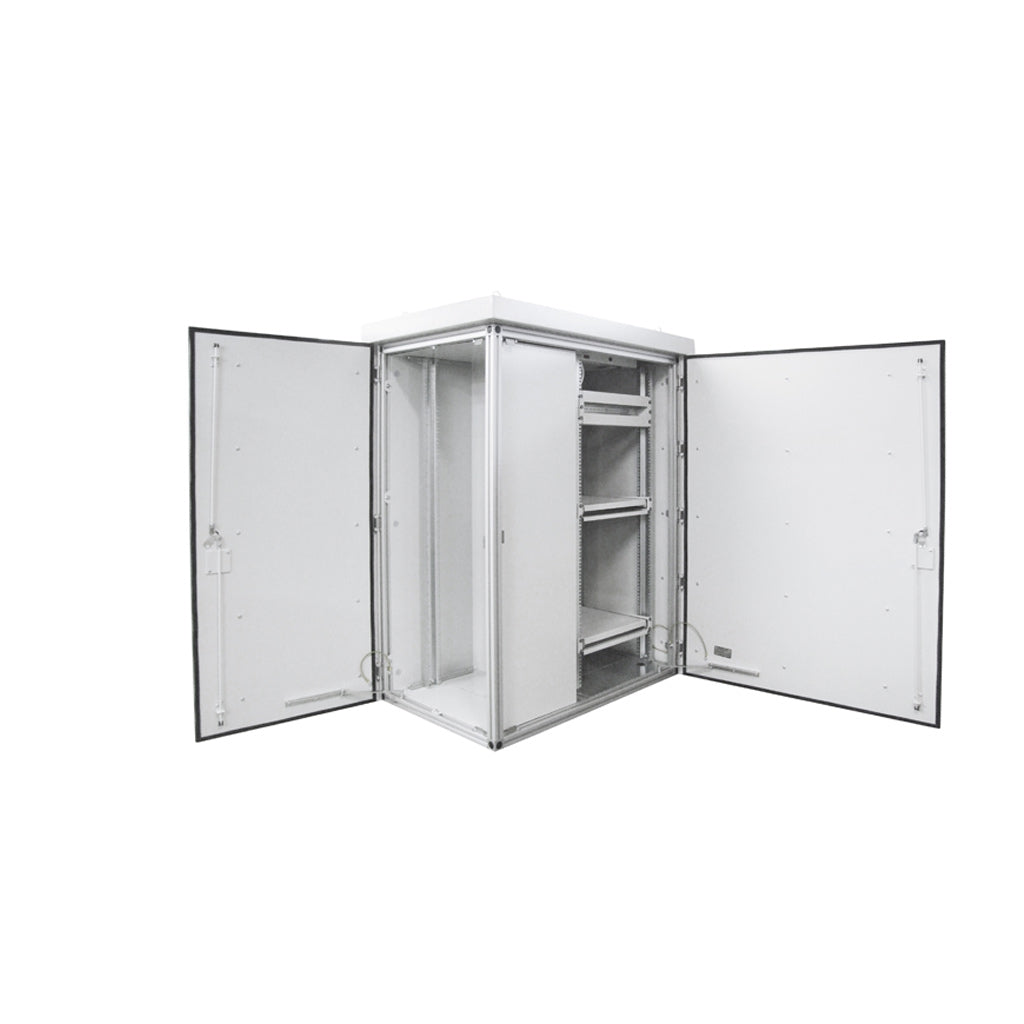

Thanks to its modular aluminium frame, the DSZ cabinet can be configured with separate internal compartments and tailored equipment layouts, including:
- Dedicated sections for batteries, power distribution, MDF/DDF and electronics
- Telecom and IT mounting systems
- Custom internal racks and mounting frames
- Additional mounting rails, shelves or partition walls
This flexibility makes the DSZ suitable for telecom operators, broadband providers, utilities and industrial users.
Customisation Options
- Thermal insulation
- Heating and ventilation modules with thermostatic control

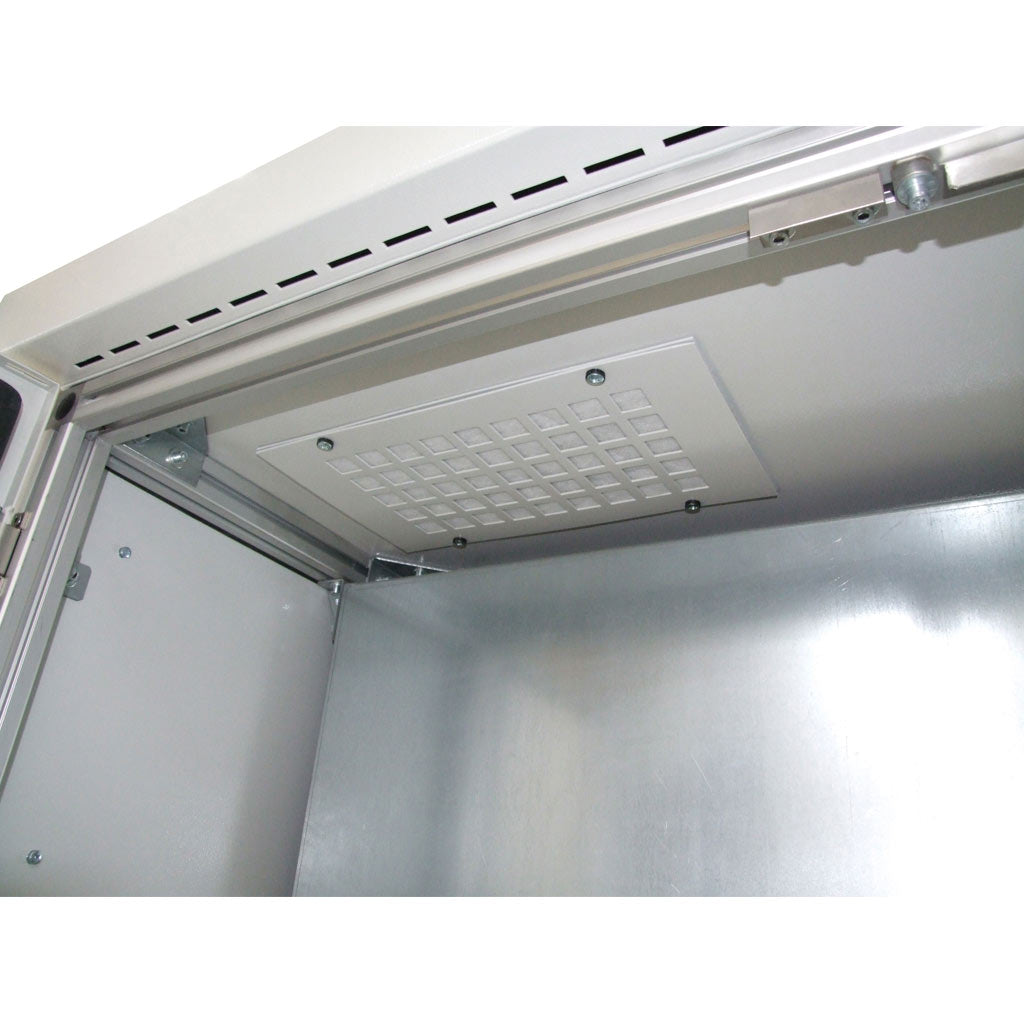

- Ventilation panels and fan systems
- Cooling or air-conditioning units
- Non-standard enclosure dimensions
- Powder coating in any RAL colour
Applications
- Outdoor telecom and fibre access points
- Broadband distribution cabinets
- Roadside electronic and communication systems
- Industrial field electronics
- Smart city and infrastructure installations
- Power monitoring and utility communication nodes
Engineering Summary
The DSZ Outdoor Telecom & Data Access Cabinet provides a robust, secure and thermally stable solution for outdoor electronic infrastructure, delivering reliable long-term protection for telecom, broadband and industrial systems.
