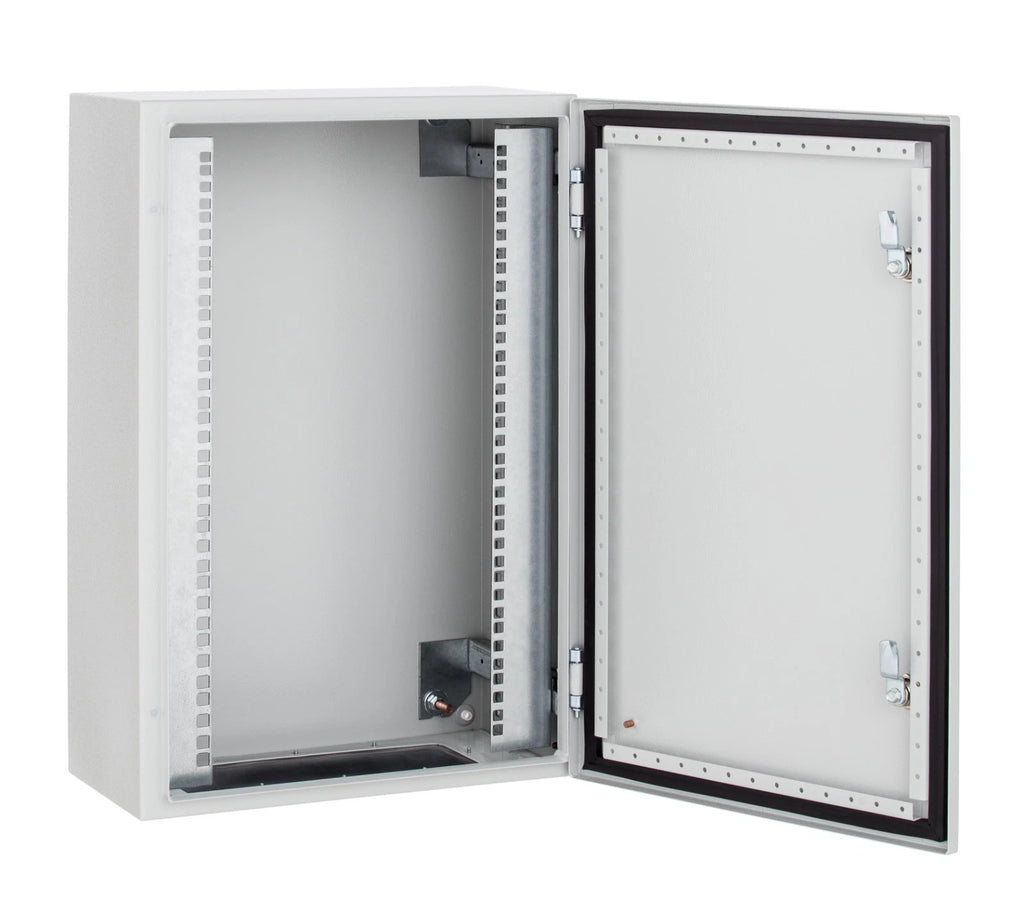

Data Cabinet 19" Data Rack Wall Mounted IP66 IK10 C2 RSC

The RSC series represents a range of compact, wall-mounted or free-standing enclosures with a factory-installed 19-inch rack frame. Designed for secure and organised housing of network, control, or electronic equipment, the RSC is ideal for indoor installations in commercial, industrial, and technical environments.

• Product Type: RSC
• Mounting: Wall-mounted or free-standing
• Material / Finish: Steel, powder coated in RAL7035
• Corrosion Resistance Class: C2 (RSC variant)
• Impact Resistance: IK10
• Ingress Protection: IP66 – Dust protected and resistant to low-pressure water jets
• Operating Temperature Range: –40°C to +80°C

• Monoblock (fully welded) steel body for maximum strength and rigidity
• Single perforated 19″ rack frame, made from 2 mm galvanised steel, adjustable in depth
• IP55 ingress protection – dust protected and resistant to low-pressure water jets from any direction
• IK10 impact resistance – high mechanical impact resistance
• Hinged door with 105° opening, reversible left/right
• Heights ≤ 500 mm – 1 × D5 lock; Heights > 500 mm – 2 × D5 locks
• Internal perforated cross-braces for mounting accessories
• Cable entry located in the base (size depends on enclosure width)
• Threaded earthing studs in both door and body

This robust enclosure features a monoblock fully welded steel body with powder-coated RAL7035 finish, providing C2 corrosion resistance suitable for indoor environments with low corrosion risk. The IP55 rating ensures complete dust protection and resistance to low-pressure water jets from any direction, making it ideal for various industrial and commercial settings. With IK10 impact resistance, the enclosure withstands high mechanical impacts, protecting your valuable network and server equipment.

• Extended temperature range: –50°C to +120°C
• Non-standard dimensions available
• Perforations in door, body, or mounting plate
• Alternative colours from the RAL palette
• Outdoor versions with higher corrosion resistance (SZC – C3, SZC-MG – C4)

Made to Order ONLY for Larger Quantities

This product is available to order in larger quantities. For bulk requirements, project orders, or bespoke quantity requests, please contact us directly so we can confirm availability, lead time, and pricing.
