External Access Panel Insulated Lockable White - Stainless Steel 316L

316L Stainless Steel Inspection Door Insulated Armaflex 19mm - Powder-coated White Finish

Insulated stainless steel access panel for internal and external wall applications.

Lined with 19mm Armaflex insulation for superior condensation prevention and energy efficiency.

Available in multiple UK-standard sizes, with bespoke options available upon request.

Key Features:

• Material: Manufactured from AISI 316L stainless steel
• Finish: Powder-coated White Finish
• Locking System:
  • Standard D5 nickel-plated metal cam lock
  • Optional 1333 patent chromed cam lock upgrade
• Application: Internal and external wall or service access
  • Utility cupboards
  • Meter boxes
  • Concealed services
• Installation: Wall-mount design, straightforward fitting
• Origin: Manufactured in Europe
• 19mm Armaflex insulation bonded to door
• Corrosion Class CX rated construction
• Sealed internal frame for enhanced weather resistance
• Custom Orders: Made-to-measure options available

• Size Options (Nominal Sizes):

  - 150 x 150mm (Main Installation Dimension: 145 x 145mm)
  - 300 x 300mm (Main Installation Dimension: 295 x 295mm)
  - 400 x 400mm (Main Installation Dimension: 395 x 395mm)
  - 600 x 600mm (Main Installation Dimension: 595 x 595mm)

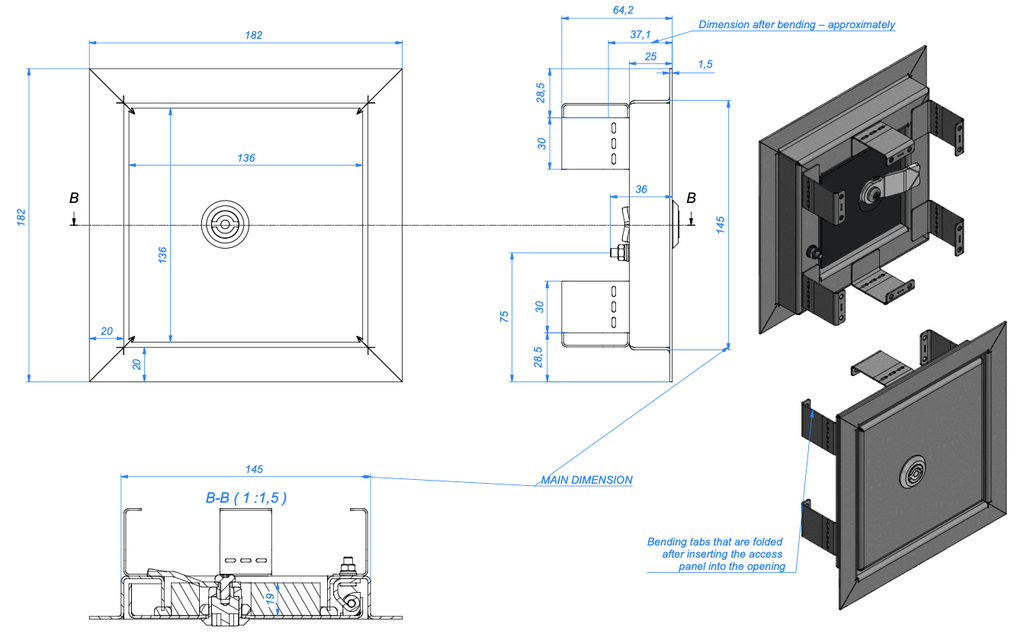

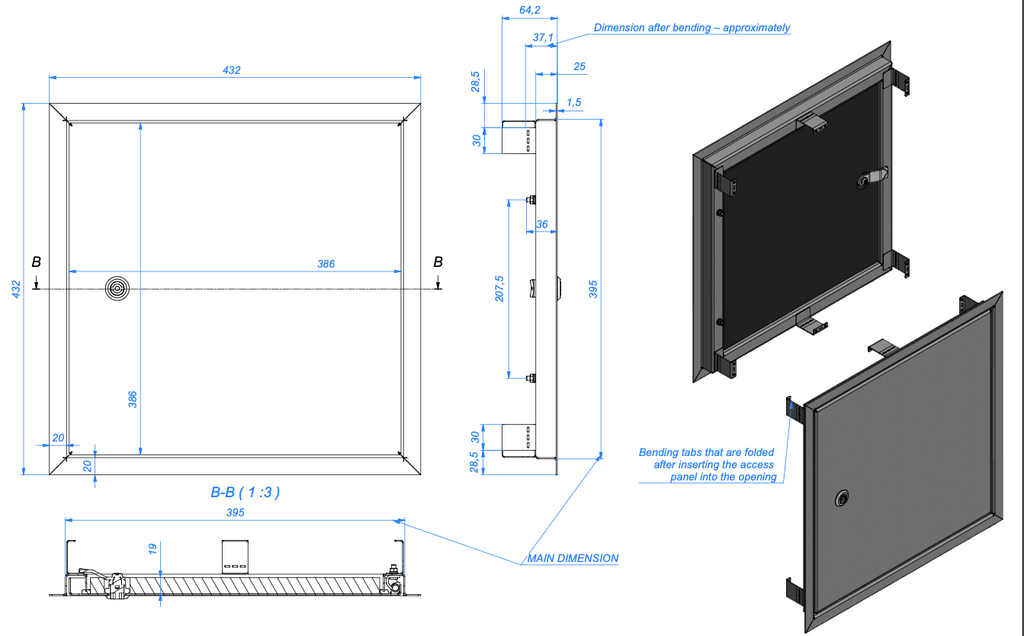

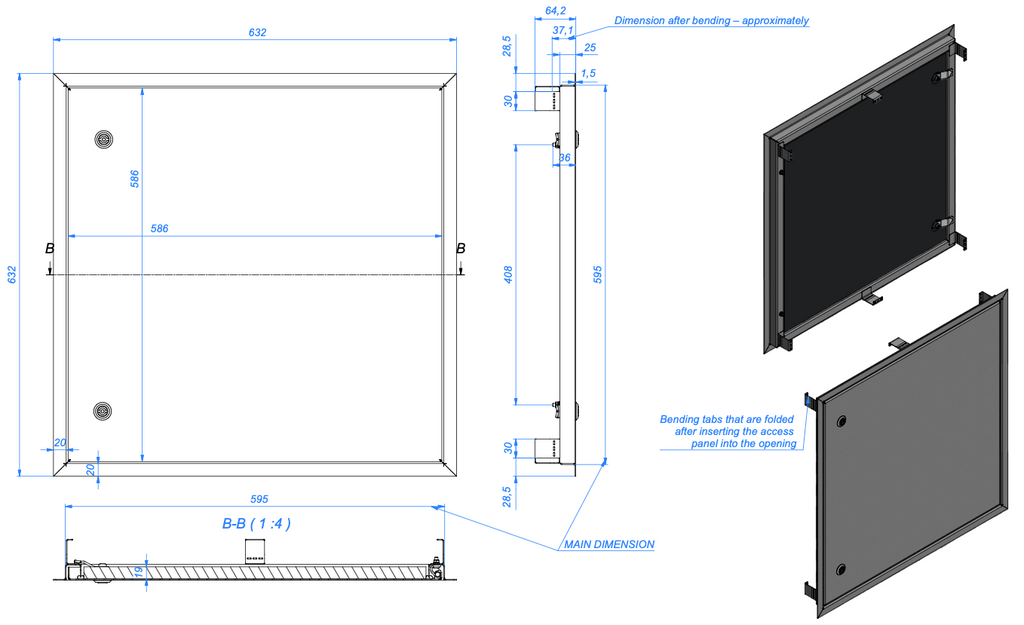

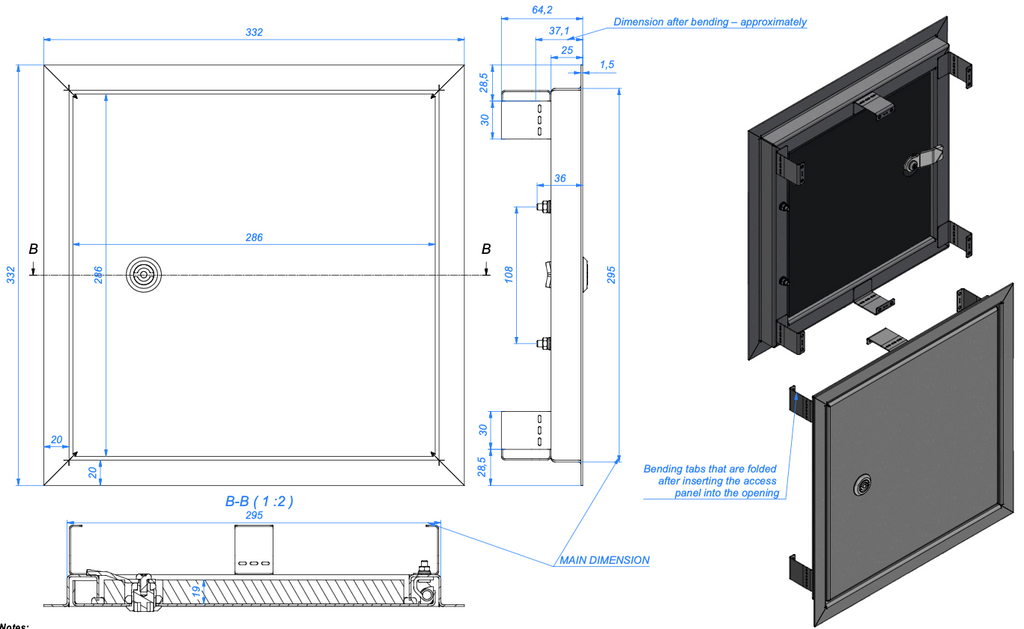

  Please refer to the technical drawing for exact manufacturing and installation dimensions.



Important Dimension Information

The size stated in the product title refers to the nominal panel size commonly used within the industry.

For installations where precise tolerances are required, please refer to the technical drawing and the Main Installation Dimension shown on the drawing.

Actual manufactured dimensions may vary slightly from the nominal size. Customers should always verify the technical drawing before cutting openings or ordering for applications with limited installation tolerances.

Technical drawings are available within the product images.

What is Armaflex Insulation?

• Armaflex is a closed-cell elastomeric insulation material
• Designed to help limit moisture ingress within insulation systems
• Commonly used in applications where condensation control is required
• Known for its flexible structure and durability
• Widely used across mechanical and building service installations

Learn more about Armaflex:
https://www.armacell.com/en-GB/armaflex-overview

Why Choose This Access Door Panel?

• AISI 316L Stainless Steel Construction – suitable for demanding environments
• Corrosion Class CX Rated – designed for high corrosion environments
• Insulated Door Panel – includes 19mm Armaflex insulation
• Lockable Access – cam lock system for controlled entry
• Wall-Mounted Design – suitable for internal and external installations

Made to Order ONLY for Larger Quantities

This product is available to order in larger quantities. For bulk requirements, project orders, or bespoke quantity requests, please contact us directly so we can confirm availability, lead time, and pricing.
