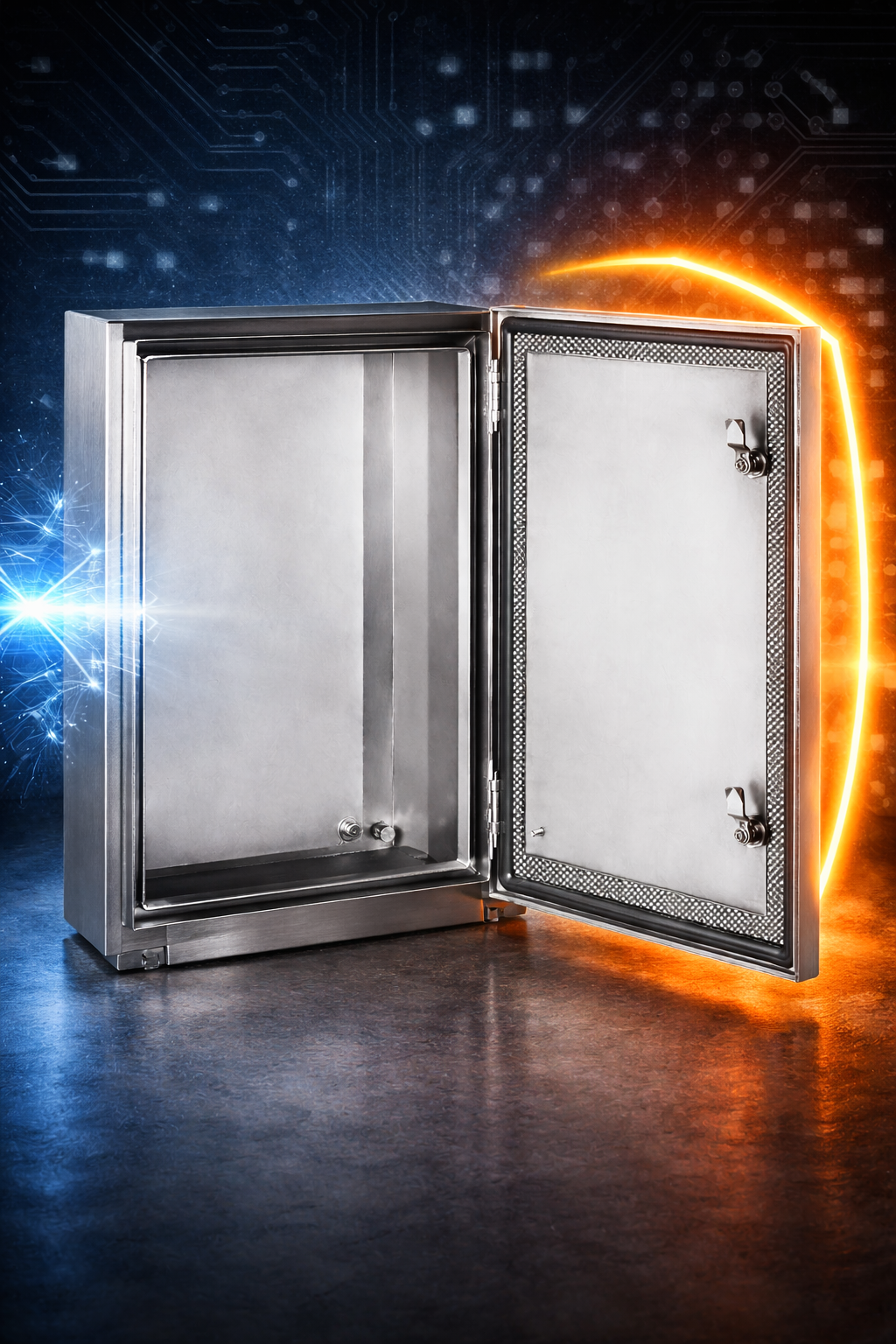

EMC Electrical Enclosure IP66 Aluminium / Stainless Steel RSA-EMC

Product Type: RSA-EMC

Material Options

RSA-AL-EMC-IP66 – aluminium (C3* corrosion class), powder coated RAL7035

RSA-OH-EMC-IP66 – stainless steel 1.4301 (AISI 304), brushed finish (C4**)

RSA-KO-EMC-IP66 – stainless steel 1.4404 (AISI 316L), brushed finish (CX**)

Specifications

Ingress Protection: IP66

Impact Resistance: IK10

Temperature Range: –30°C to +80°C

Product Overview

The RSA-EMC series is a range of compact EMC enclosures with enhanced sealing and integrated EMC protection. Each enclosure is designed with a double edge profile and a combination of an environmental gasket and an EMC gasket, providing both IP66 environmental sealing and electromagnetic shielding.

With 63 dimensional variants available, the RSA-EMC line allows precise matching to project requirements and installed equipment. The enclosures are suitable for standard industrial installations as well as more demanding specialist applications in automation, telecommunications, and other sectors where electromagnetic compatibility (EMC) is critical.

EMC (Electromagnetic Compatibility) means that the enclosure helps to protect the equipment inside against external electromagnetic interference, while also reducing the emission of interference from the equipment to the surrounding environment. This is particularly important in industrial environments where multiple electrical and electronic systems operate in close proximity.

Standard RSA-EMC enclosures are suitable for both indoor and outdoor use, providing mechanical protection, environmental protection (against dust and moisture) and electromagnetic shielding in a single compact housing.

Key Features

• IP66 protection – dust-tight and resistant to strong water jets
• IK10 impact resistance for demanding industrial environments

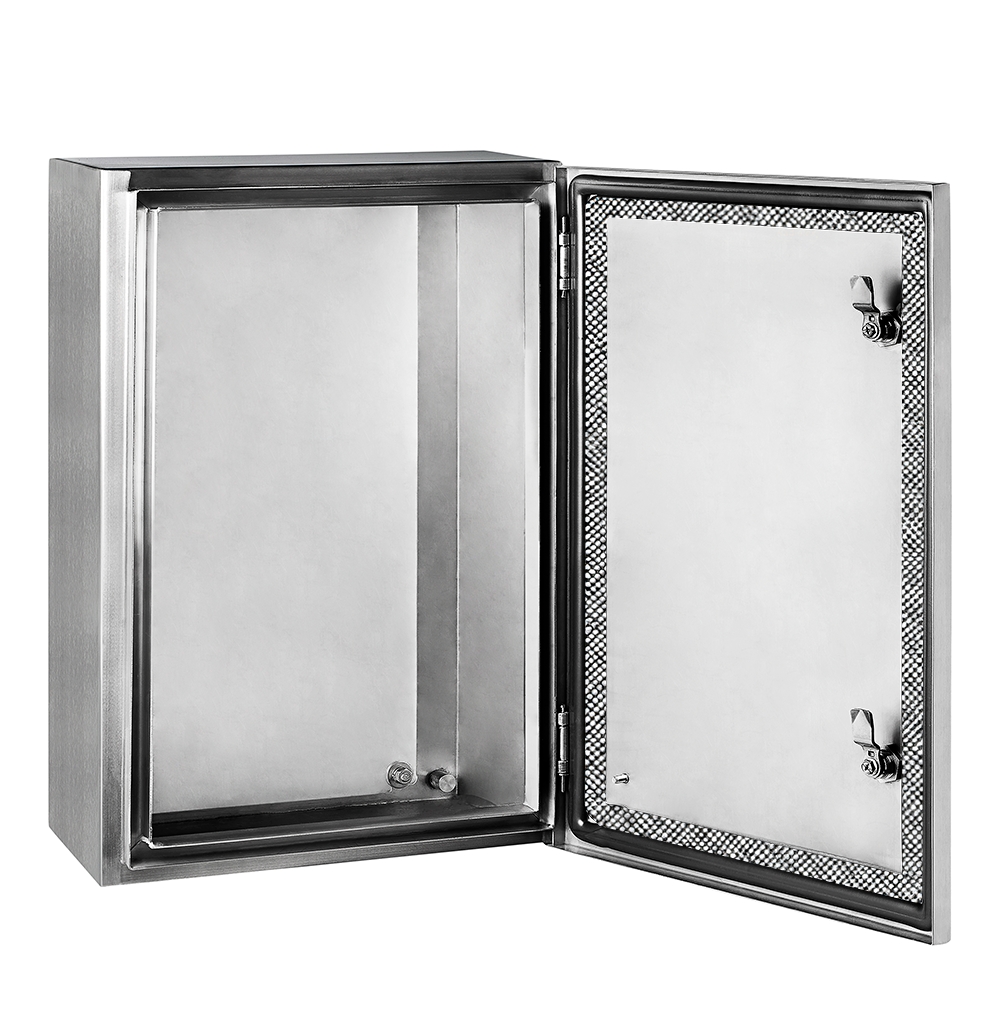

• Double edge design with separate environmental and EMC gaskets
• Welded monoblock body for high rigidity and tightness
• Hinged door with 105° opening angle and reversible opening direction
• Enclosures up to 500 mm in height fitted with one D5 lock; taller versions fitted with two D5 locks
• 3 mm galvanised steel mounting plate supplied as standard
• Cable entry via base gland opening (dimensions depend on enclosure width)
• Threaded earth studs in both door and body
• Internal door reinforcement using perforated profiles to simplify mounting of additional components
• Available in aluminium, stainless steel 1.4301 (AISI 304) or stainless steel 1.4404 (AISI 316L) with brushed finish (material-dependent corrosion class C3*, C4**, CX**)

Customisation Options

• Extended operating temperature range: –50°C to +120°C
• Non-standard / custom dimensions
• Factory cut-outs in the door, body or mounting plate
• Painting in any RAL colour (for aluminium version) to match project or site requirements
