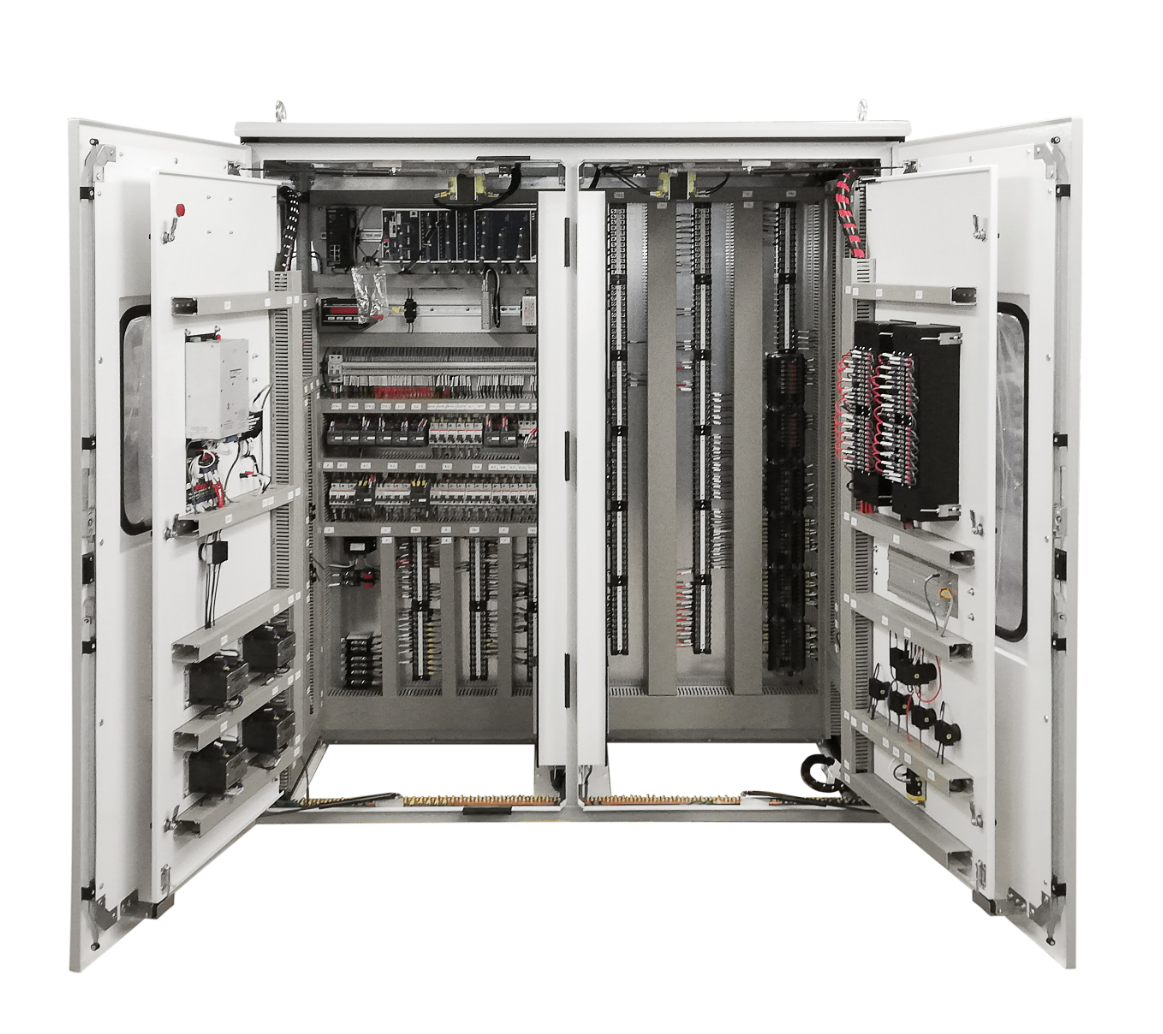

IEC vs UL 508A Control Panels – Key Differences Engineers Need to Understand

In industrial automation, an electrical control panel is far more than a metal enclosure with components inside. It is a complete system that must comply with defined safety, quality, and regulatory standards. Two regulatory frameworks dominate this space globally: the European IEC standards and the North American UL 508A standard. While IEC- and UL-built panels may appear similar at first glance, the differences between them are significant and directly impact design, component selection, certification, and market approval.

Different regulatory philosophies

IEC standards form a broad international framework used primarily in Europe and many other global markets. They focus on functional safety, protection against electric shock, conductor sizing, fault protection, and general design principles. Engineers and panel builders have a degree of design flexibility, provided the final solution meets the applicable safety and performance requirements.

UL 508A, by contrast, is a highly prescriptive North American standard. It does not only define what must be achieved, but also how it must be executed. Compliance is based on strict construction rules, documented methodologies, and audited manufacturing processes. The emphasis is on repeatability, traceability, and inspection-ready design.

Certification and market access

IEC-based panels are typically self-declared by the manufacturer. Compliance is demonstrated through CE marking, with the responsibility resting fully on the panel builder. There is no single certifying body that approves each panel design.

UL 508A panels require a different approach. To legally supply industrial control panels to the US and Canadian markets, the manufacturer must participate in the UL 508A Panel Shop Program. This involves regular audits, strict documentation control, and the right to apply UL labels. Without this certification, panels may be rejected by inspectors, insurers, or end clients.

Component selection

IEC panels can be built using IEC-rated components widely available across Europe and international markets. In UL 508A panels, most components must be UL Listed or UL Recognised and used strictly within their approved application scope. This applies not only to breakers and contactors, but also to terminal blocks, wiring, marking systems, and accessories. As a result, UL panel design often requires a different component strategy from IEC projects.

Short-circuit current rating (SCCR)

SCCR is a central requirement under UL 508A. Every panel must have a clearly defined SCCR value, calculated using prescribed methods. The lowest-rated component in the power path often determines the overall rating unless mitigation techniques are applied. In IEC-based designs, short-circuit performance is also important, but the calculation and declaration approach is generally more flexible and less formula-driven.

Labelling, markings, and documentation

UL 508A imposes very specific requirements for nameplates, wiring identification, grounding labels, and documentation content. Panel markings must follow defined terminology and formats. Documentation for UL projects is often more detailed, as it must clearly demonstrate compliance during audits and inspections. IEC documentation focuses more on conformity with harmonised standards and CE requirements.

Choosing the right standard

Neither IEC nor UL 508A is inherently better than the other. Each standard is designed for a specific regulatory environment. IEC panels are well suited to European and international projects, while UL 508A is essential for installations in the United States and Canada. Selecting the correct standard at the design stage helps avoid costly redesigns, delays, and compliance issues later in the project lifecycle.
